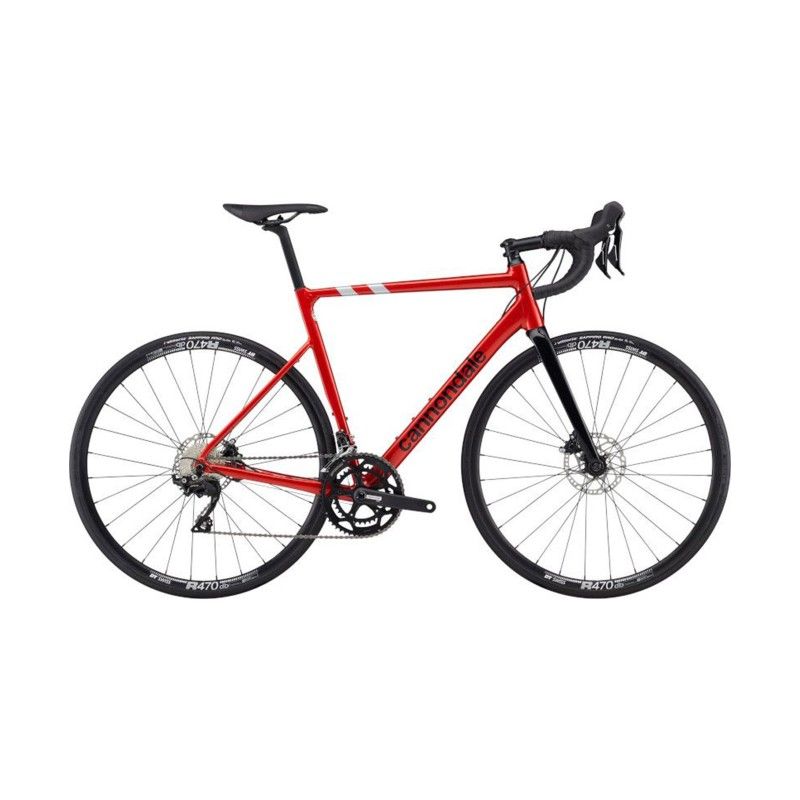

CANNONDALE CAAD13 DISC 105 BIKE

The CANNONDALE CAAD13 DISC 105 is a fast, smooth and maneuverable road bike with an ultra-lightweight SmartForm C1 Premium aluminum frame and Full Carbon fork. The tube shapes are specifically designed to reduce drag and keep the bike light and fast. The aerodynamic profile of the frame tubes reduces drag by up to 30% while maintaining the same weight and stiffness as or greater than classic round tubes.
The SAVE rear triangle, integrated seat collar and KNOT27 seatpost make for a smooth ride.
The lowered rear triangle and the possibility to mount large tires guarantee the best possible mix of unbeatable comfort and efficient stiffness. Possibility to mount really big tires, such as 30 mm, for maximum comfort and high performance on the road.
Speed-release thru-axles allow you to quickly mount/remove wheels and are compatible with most thru-axle wheel sets.
The bike comes with a removable fender bridge located on the rear frame.

CANNONDALE CAAD13 DISC 105 BIKE MAIN FEATURES:

• Speed, maneuverability and agility.
• SmartForm C1 Premium ultralight aluminium frame.
• Full carbon fork.
• Shimano 105 groupset with hydraulic disc brakes.
• Cannondale 1 crankset.
• HollowGram 27 KNØT seatpost.
• Prologo Nago RS saddle.

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready.
• FORK: CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm).
• HEADSET: CAAD13, integrated, 1-1/8" - 1-1/4.

DRIVETRAIN

• SHIFT: Shimano 105 GS.
• DERAILLEUR: Shimano 105, braze-on.
• SHIFT LEVER: Shimano 105 hydraulic disc, 11-speed.
• CHAIN: Shimano HG601, 11-speed.
• CRANKSET: Shimano RS510, 52/36.
• COGS: Shimano 105, 11-30, 11-speed.
• BOTTOM BRACKET: Cannondale BB30 w/ 24mm adapter.

FRENI

• FRENI: Shimano 105 hydraulic disc, 160/160mm RT54 rotors.
• LEVE FRENO: Shimano 105 hydraulic disc.

BRAKES

• RIMS: DT Swiss R470 db, 28h.
• SPOKES: Stainless Steel, 14g.
• TIRES: Vittoria Rubino Pro Bright Black, 700 x 25c.
• TIRE SIZE: 25.
• WHEEL SIZE: 700c.
• HUBS: (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock.

COMPONENTS

• HANDLEBAR: Cannondale 3, 6061 Alloy, Compact.
• STEM: Cannondale 3, 6061 Alloy, 31.8, 7°.
• GRIPS: Cannondale Bar Tape, 3.5mm.
• SADDLE: Fizik Aliante Delta, S-alloy rails.
• SEATPOST: HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm.

ITEM NUMBER

C13321U1051 (Sz.51 - Color: Candy Red) / C13321U1056 (Sz.56 - Color: Candy Red) / C13321U1058 (Sz.58 - Color: Candy Red)
