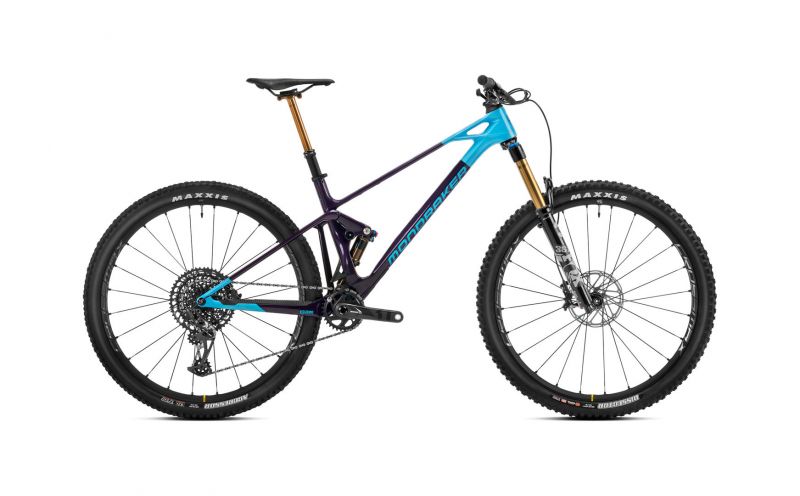

MONDRAKER RAZE CARBON RR BIKE

The brand new RAZE CARBON RR brings the incredible power to explore more trails through a combination of innovative design and exceptional performance. With its lightweight yet durable carbon frame, this mountain bike is ready to tackle any terrain with style and agility.

MONDRAKER RAZE CARBON RR BIKE MAIN FEATURES:

• High-performance carbon frame for lightweight and responsive riding.
• Modern and aggressive geometry for maximum maneuverability.
• High-quality suspensions for optimal control on rough terrains.
• High-end components for reliable and durable performance.

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 500mm.
• REAR SHOCK: Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• REAR SHOCK ADJUSTMENT: Light compression, light rebound, air volume spacer 0.6.
• FORK: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
• GRIPS: ONOFF Desert, 1lock-on, 135mm.
• SEATPOST: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm.
• SADDLE: Fizik Antares R7.
• FRONT BRAKE: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• REAR BRAKE: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• BRAKE LEVERS: Sram G2 RS, SwingLink, tool-free reach adjust.
• RIMS: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes.
• SPOKES: 24 straight-pull double butted spokes.
• FRONT HUB: Infinity hub, Boost 15x110mm, IS 6 bolts.
• REAR HUB: Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts.
• FRONT TIRE: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead.
• CRANKSET: Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.
• CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram GX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFTER: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-52T, 12s.
• DERAILLEUR HANGER: Sram UDH.
• WEIGHT: 13.1kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
