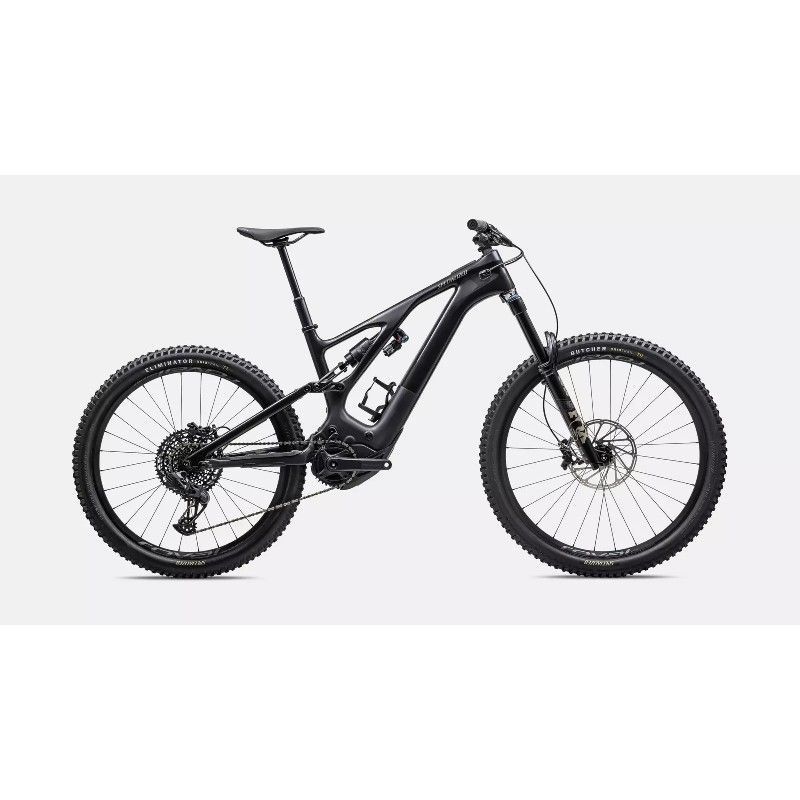

SPECIALIZED TURBO LEVO EXPERT CARBON 2023 BIKE

The SPECIALIZED TURBO LEVO EXPERT CARBON 2023 is the perfect mix of ride quality, fully exploitable power, and excellent range. The Turbo Full Power 2.2 engine and the TCU MasterMind amplify the thrust on the pedals by up to 4 times, while the autonomy allows pedalling for up to five consecutive hours on the trails.
The frame has 150mm of rear travel, custom tuning and adjustable geometry.
The bike is equipped with SRAM GX Eagle 12-speed drivetrain, FOX Performance Elite suspension and Roval Traverse wheels.
The bike features a 565 watt motor with 700Wh battery and advanced, fully integrated control unit. Power output up to 25km/h.
The TCU Mastermind is a 'hub' of information with a customisable display that includes the exact battery percentage and features the new MicroTune on the handlebars to adjust the assistance in 10% increments, so you can have as much power as you want at all times.
The mullet design with 27.5" rear wheel and 29" front wheel makes for an agile ride, while the wide cockpit centres the rider on the bike and optimises traction and control in corners. The low bottom bracket, relaxed head angle and low offset fork guarantee stability on technical terrain.
The bike offers six different geometry settings, allowing you to fine-tune performance according to riding style and terrain. The head angle can be adjusted between 63 and 65.5 degrees. The bottom bracket height can be increased or decreased by 7mm.
The 150mm travel of the Turbo Levo absorbs all shocks from the terrain and provides incredible pedalling response.

SPECIALIZED TURBO LEVO EXPERT CARBON 2023 BIKE MAIN FEATURES:

• Full Power Turbo Engine 2.2
• TCU Mastermind.
• Mullet design with 27.5" rear wheel and 29" front wheel.
• 150 mm travel.
• SRAM GX Eagle 12-speed drivetrain.
• FOX Performance Elite suspension.
• Roval Traverse wheels.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

COCKPIT

• STEM: Alloy Trail Stem, 35mm bar bore.
• SADDLE: Bridge Comp, Hollow Cr-mo rails, 155/143mm.
• SEATPOST: OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm).
• HANDLEBAR: Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp.

FRAMESET

• BINDER: Alloy, 38.6mm.
• FRAME: FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot.
• FORK: Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset.

WHEELS

• FRONT TIRE: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6".
• REAR TIRE: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6".
• INNER TUBES: Standard, Presta Valve.
• FRONT WHEEL: Traverse 27.5.
• REAR WHEEL: Traverse 29.

E-BIKE

• WIRNESS: Custom Specialized wiring harness.
• CHARGER: Custom charger, 42V4A w/ Rosenberger plug, 100-240V.
• BATTERY: Specialized M3-700, Integrated battery, 700Wh.

COCKPIT

• GRIPS: Deity Grips

DRIVETRAIN

• CRANKSET: Praxis forged M30, custom offset, 160mm.
• SHIFTERS: SRAM GX Eagle AXS Controller.
• REAR SHIFT: SRAM GX Eagle AXS, w/ battery cover.
• CHAIN: SRAM GX Eagle, 12-speed.
• COGS: SRAM X-Sync Eagle, 104 BCD, 34t, steel.
• CASSETTE: Sram XG-1275, 12-speed, 10-52t.

SUSPENSIONS

• SHOCK: S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm.

BRAKES

• FRONT BRAKE: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm.
• REAR BRAKE: SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm.

ACCESSORIES

• SWAT: SWAT CC steerer tube integrated tool with chain tool and link.

ELECTRONICS

• MOTOR: Specialized 2.2 Custom Rx Trail Tuned Motor.
• UI/REMOTE: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

95223-3204 (Sz.S4 - Color: GLOSS / SATIN OBSIDIAN / GLOSS TAUPE) / 95223-3205 (Sz.S5 - Color: GLOSS / SATIN OBSIDIAN / GLOSS TAUPE)
