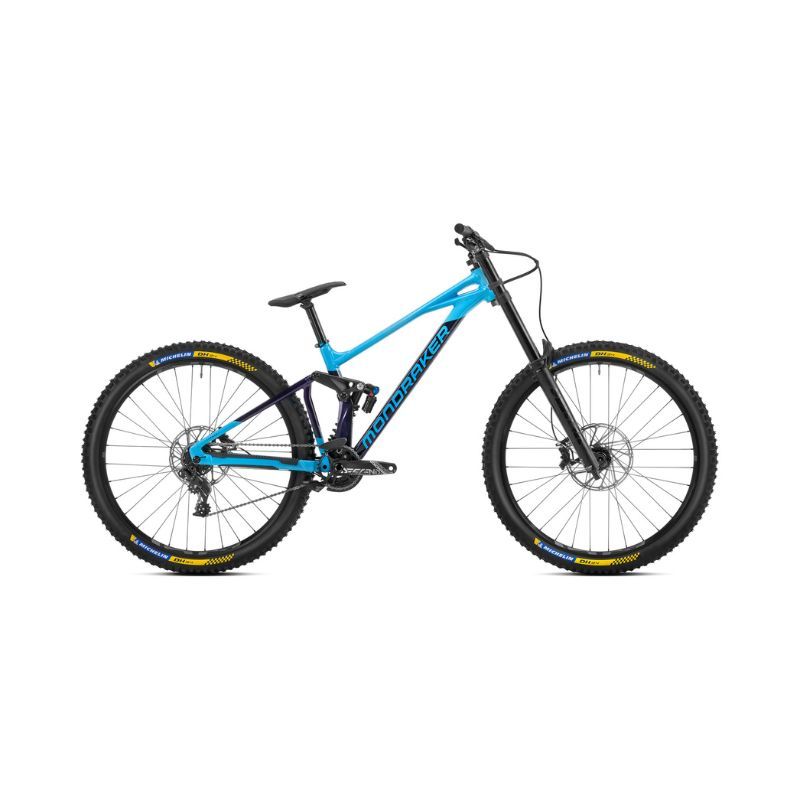

BICI MONDRAKER SUMMUM R

Bici da downhill perfetta per chi vuole il meglio nei bikepark. Il telaio è in alluminio e la bici monta gruppo GX DH e ruote e13.

LA BICI VIENE CONSEGNATA PREASSEMBLATA DA NOI*

SPECIFICHE TECNICHE

• TELAIO: Summum 29 6061 Stealth Evo alloy, hydroformed tubing, Zero Suspension System, 200mm travel, Forward Geometry, alloy top link with shock mount bearings, 12x157mm SuperBoost rear axle, 83mm BSA bottom bracket, HHG internal cable routing system, Enduro Bearings dual MAX bearings, ISCG 05. *Optional geometry kit.
• TAGLIE: S / M / L / XL 29" y MX.
• AMMORTIZZATORE: Fox DHX2 Performance Elite, 225x70mm.Adjustments: low compression, low rebound, spring preload. Trunnion top mount, 30x8mm lower bushes.
• REGOLAZIONE AMMORTIZZATORE: Compression ECC010, rebound ECR012.Spring stiffness (depending on bike size): S=400 lbs, M=450 lbs, L/XL=500 lbs.
• FORCELLA: Fox 40 29 Float FIT GRIP2 EVOL Performance, 203mm, air spring, 1-1/8" tube, 20x110mm axle, 56mm offset.Adjustments: low compression, low rebound, air preload.
• SERIE STERZO: ONOFF Mercurium 1.5 ZS for 1-1/8" tube, 41x30,15x7x45ºx45º ACB sealed bearings, cup kit for geometry change, outer diameter 56mm.
• ATTACCO MANUBRIO: ONOFF Krypton DH CNC FG integrato, regolabile tra 25-30mm, per manubri da 31,8mm, 6061, distanziale 2x6mm.
• MANUBRIO: ONOFF Sulfur 1.0 bi-biconed 6061 alloy, height: 20mm, width: 800mm, 9° backsweep, 5° upsweep, diameter 31.8mm.
• MANOPOLE: ONOFF Desert, 1 lock-on, 135mm.
• REGGISELLA: SDG Micro I-Beam SP-751 Alloy, diameter 31,6mm, length 300mm, micro-adjustable.
• SELLA: SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidewalls.
• FRENO ANTERIORE: SRAM Code R, oversized 4-piston caliper, 220mm one-piece IS 6-bolt Centerline disc, sintered steel plate pads.
• FRENO POSTERIORE: SRAM Code R, oversized 4-piston caliper, 203mm one-piece IS 6-bolt Centerline disc, sintered steel plate pads.
• LEVE FRENO: SRAM Code R, range adjustment without tools.
• RUOTE: e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 32 spokes.
• RAGGI: e*thirteen custom Hive alloy, black trichroplated, alloy nipples, with nipple washers.
• MOZZO ANTERIORE: e*thirteen Boost 20x110mm, triple-sealed, 100% machined aluminium, IS 6 bolts.
• MOZZO POSTERIORE: e*thirteen Superboost 12x157mm, triple-sealed, 100% machined aluminium, IS 6-bolt, with 6° return angle.
• COPERTONE ANTERIORE: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced carcass, with rigid rim.
• COPERTONE POSTERIORE: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced carcass, with rigid rim.
• PEDIVELLE: Truvativ Descendant DH, DUB axle, Direct Mount chainring, 165mm.
• CORONA: 34, acero, X-SYNC.
• MOVIMENTO CENTRALE: SRAM DUB BSA, sealed bearings, 83mm.
• CATENA: SRAM PC1110 11v, Powerlock.
• DERAGLIATORE ANTERIORE: E.13 Vario Compact Upper Slider, Alloy mount for ISCG 05, DMB (direct mount chainring guard), Lower Slider compatible with 34-36" chainrings.
• DERAGLIATORE POSTERIORE: SRAM GX DH, 7v, medium case, X-ACTUATION 1:1.
• MANETTINO CAMBIO: SRAM trigger GX DH 7v, X-ACTUATION 1:1.
• CASSETTA PIGNONI: SRAM PG 720 11-25T, 7v.
• FORCELLINO CAMBIO: Mondraker M068.
• PESO (SENZA PEDALI): 17.9KG.

*PRO-M STORE OFFRE GRATUITAMENTE IL SERVIZIO DI PRE-ASSEMBLAGGIO DELLA BICI: REGGISELLA, FORCELLA, CAMBIO E FRENI SONO GIÀ MONTATI
