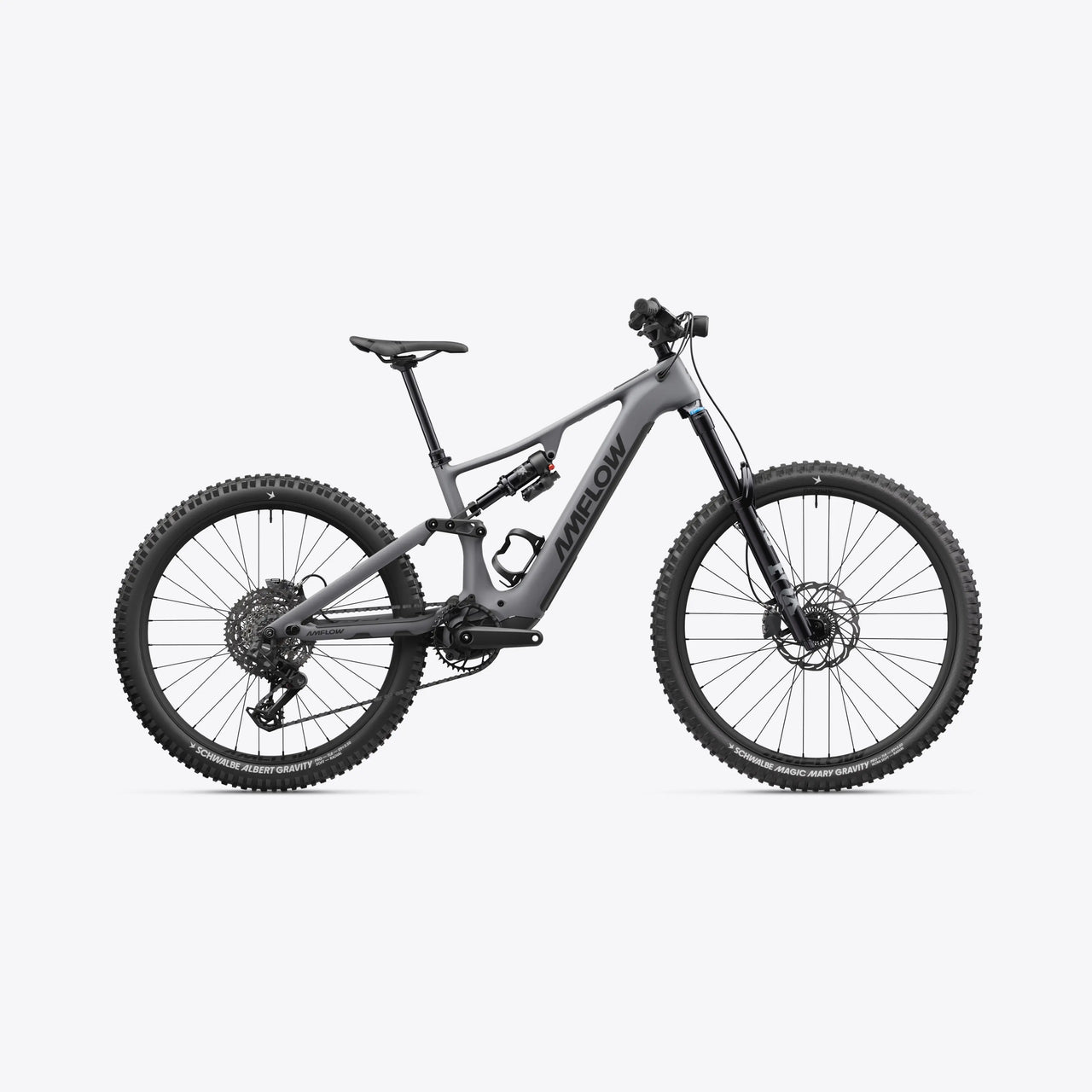

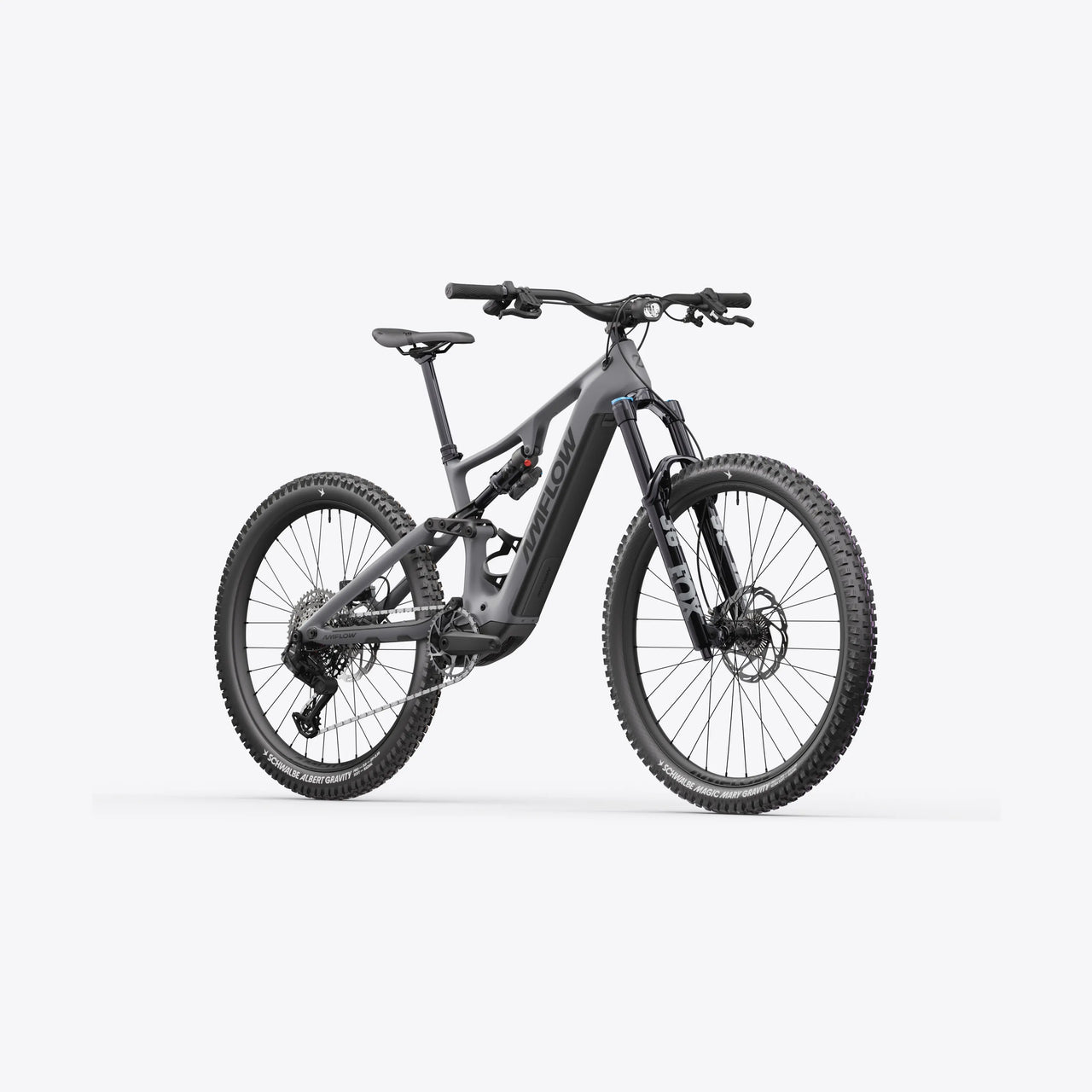

AMFLOW PR CARBON PRO BIKE

The Amflow PR Carbon Pro is a high-performance e-MTB engineered without compromise to deliver maximum efficiency, exceptional power density, and extensive frame geometry adjustability. Its full carbon frame, weighing approximately 2.9 kg, provides the ideal balance of stiffness, strength, and low weight, forming the foundation for precise, responsive, and controlled handling even on the most demanding trails.

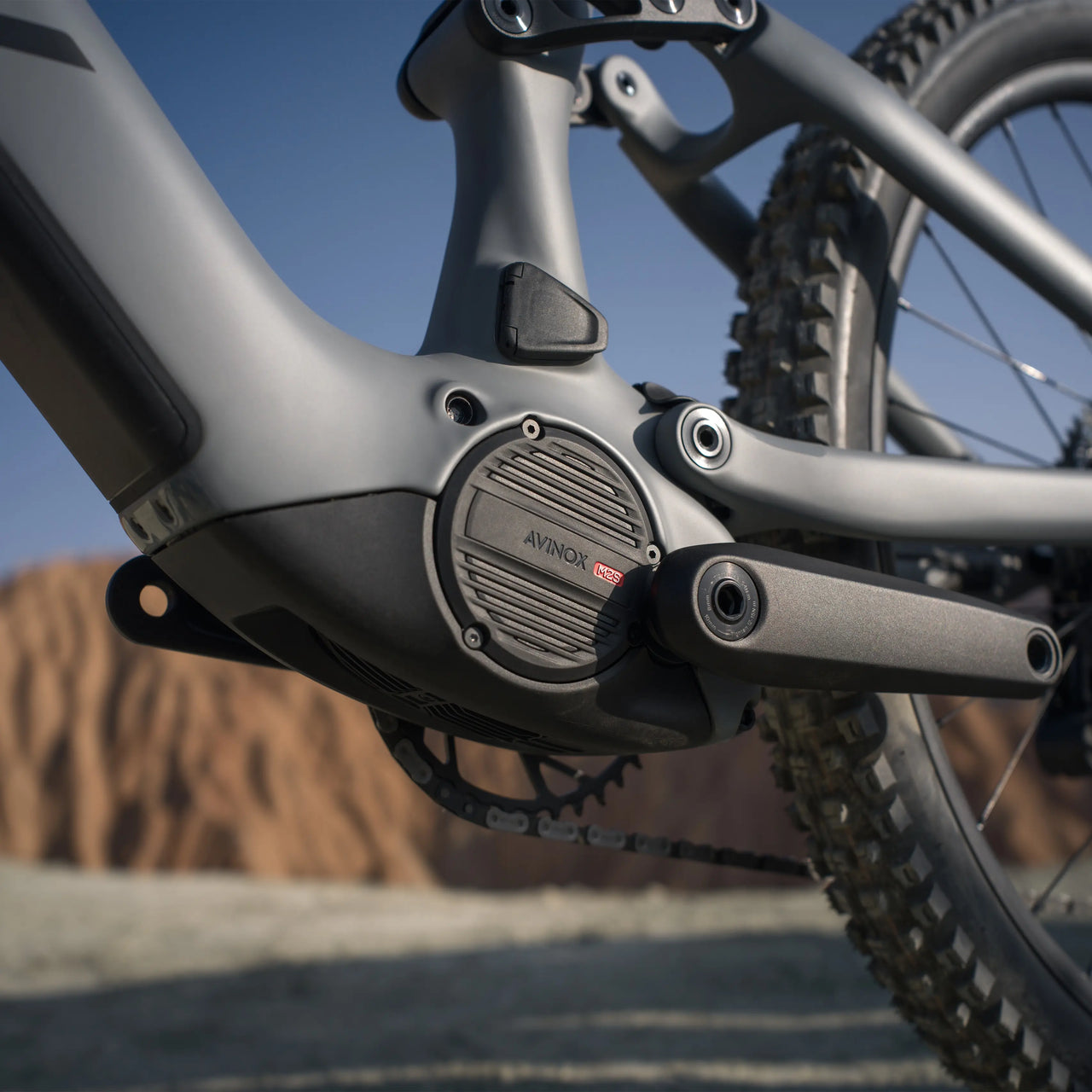

At the heart of the bike is the Avinox M2S drive unit, weighing just 2.59 kg while delivering up to 1,500 W of peak power and a maximum torque of 150 Nm. Thanks to multiple high-precision sensors and intelligent control algorithms, power delivery is continuously managed in real time, ensuring smooth, progressive, and natural assistance.

The system also features an Auto mode, which automatically adjusts motor output according to terrain conditions and rider input, while the Boost mode temporarily unleashes the motor's full power to conquer steep climbs and highly technical trail sections.

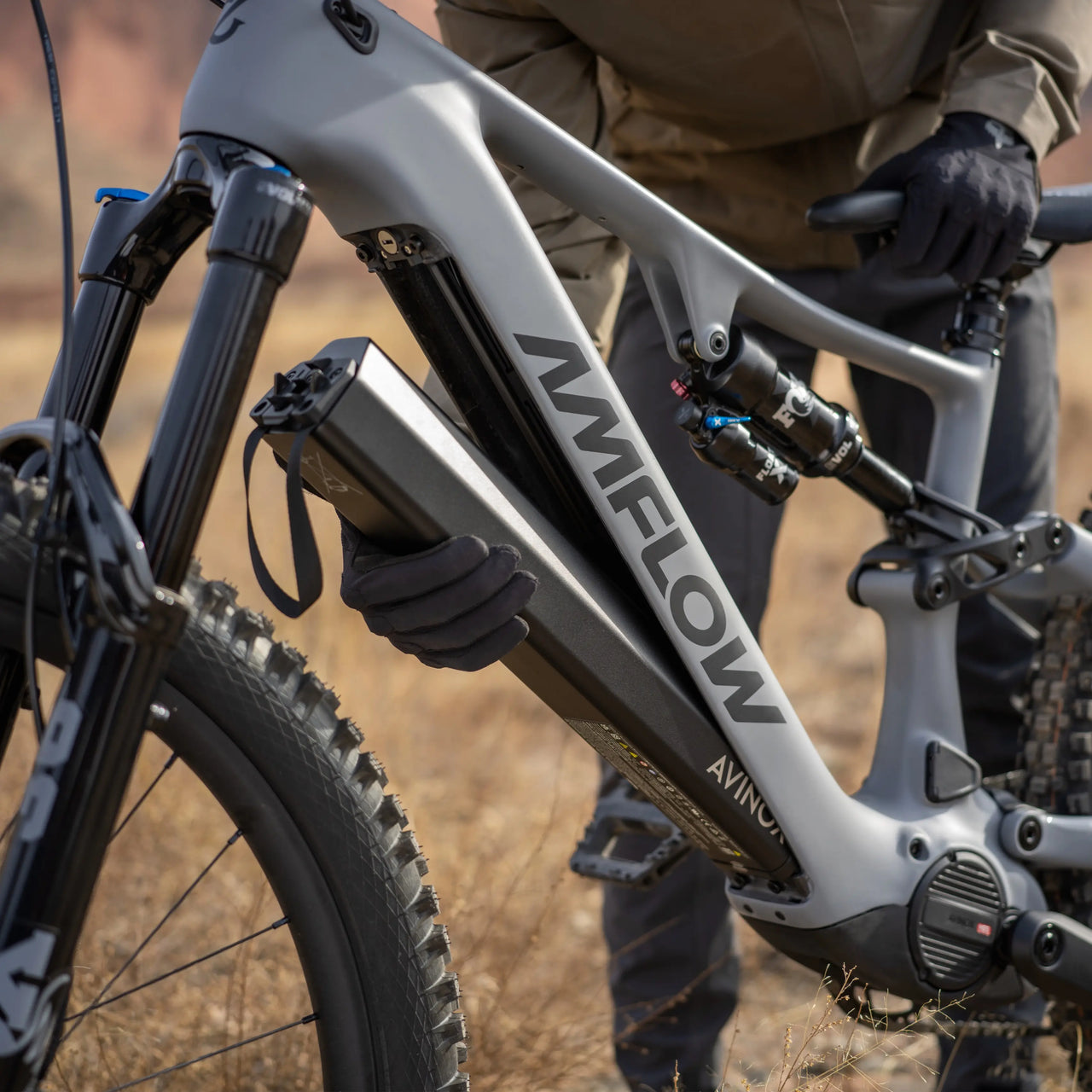

Power is supplied by the removable Avinox RS800 battery with a capacity of 800 Wh. The modular battery system allows for quick battery replacement and flexible range extension, while the fast-charging function minimizes charging times and downtime.

Key Features

• Full carbon frame weighing approximately 2.9 kg
• Avinox M2S motor with up to 150 Nm of maximum torque and 1,500 W peak power
• FOX Float X Performance rear shock
• FOX 36 Performance suspension fork
• SRAM S1000 Eagle Transmission drivetrain
• Progressive geometry with up to 40 adjustment configurations (head angle, bottom bracket height, and chainstay length)
• Removable Avinox RS800 800 Wh battery
• Fast-charging capability to minimize charging time
• Schwalbe Magic Mary Radial 29×2.5" front tire, Gravity Pro, Ultra Soft compound
• Schwalbe Albert Radial 27.5×2.5" rear tire, Gravity Pro, Addix Soft compound

TECHNICAL SPECIFICATIONS

FRAME

• Amflow PR Carbon Pro frame
• 40 adjustable geometry configurations *
• Compatible with both 27.5" and 29" rear wheels
• The bike offers five head angle settings, two bottom bracket height settings, and four chainstay length settings. Riders can combine these adjustments to suit different riding styles and trail conditions, resulting in up to 40 theoretical geometry configurations. The actual adjustment range and resulting ride characteristics depend on real-world setup and usage.

E-BIKE SYSTEM

• Avinox M2S drive unit: 130 Nm rated torque, 150 Nm peak torque

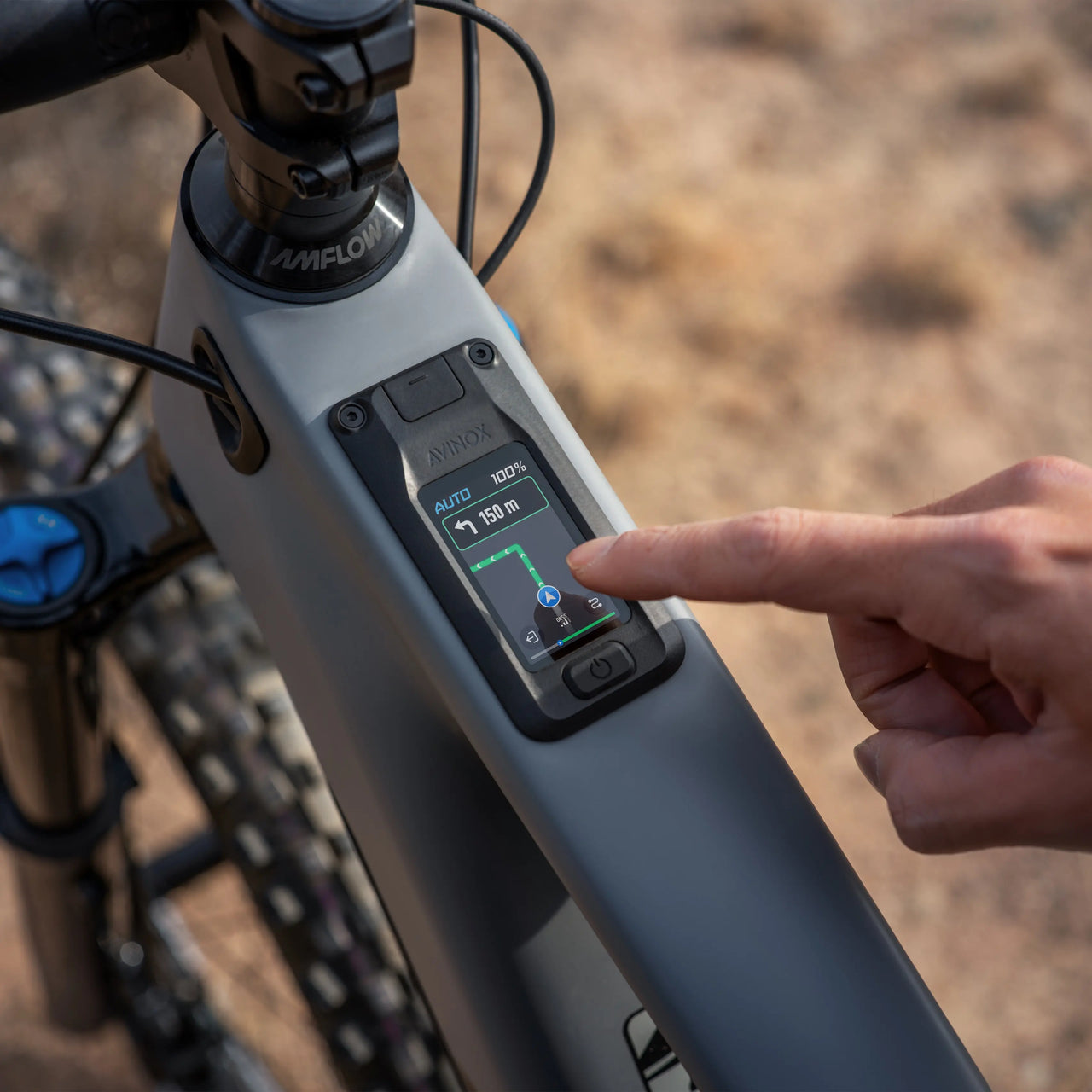

• Avinox Display: 2" OLED control display
• Removable Avinox battery: 800 Wh
• Avinox wireless controllers: left and right
• Avinox fast charger: 12 A / 508 W

REAR SHOCK

• FOX Float X Performance
• Two-position lever, custom tune, LSR adjustment, 210×55 mm air shock

FORK

• FOX 36 Performance
• 160 mm travel, GRIP damper, Sweep/LSR adjustment, 15×110 mm Boost axle, 44 mm offset

DRIVETRAIN

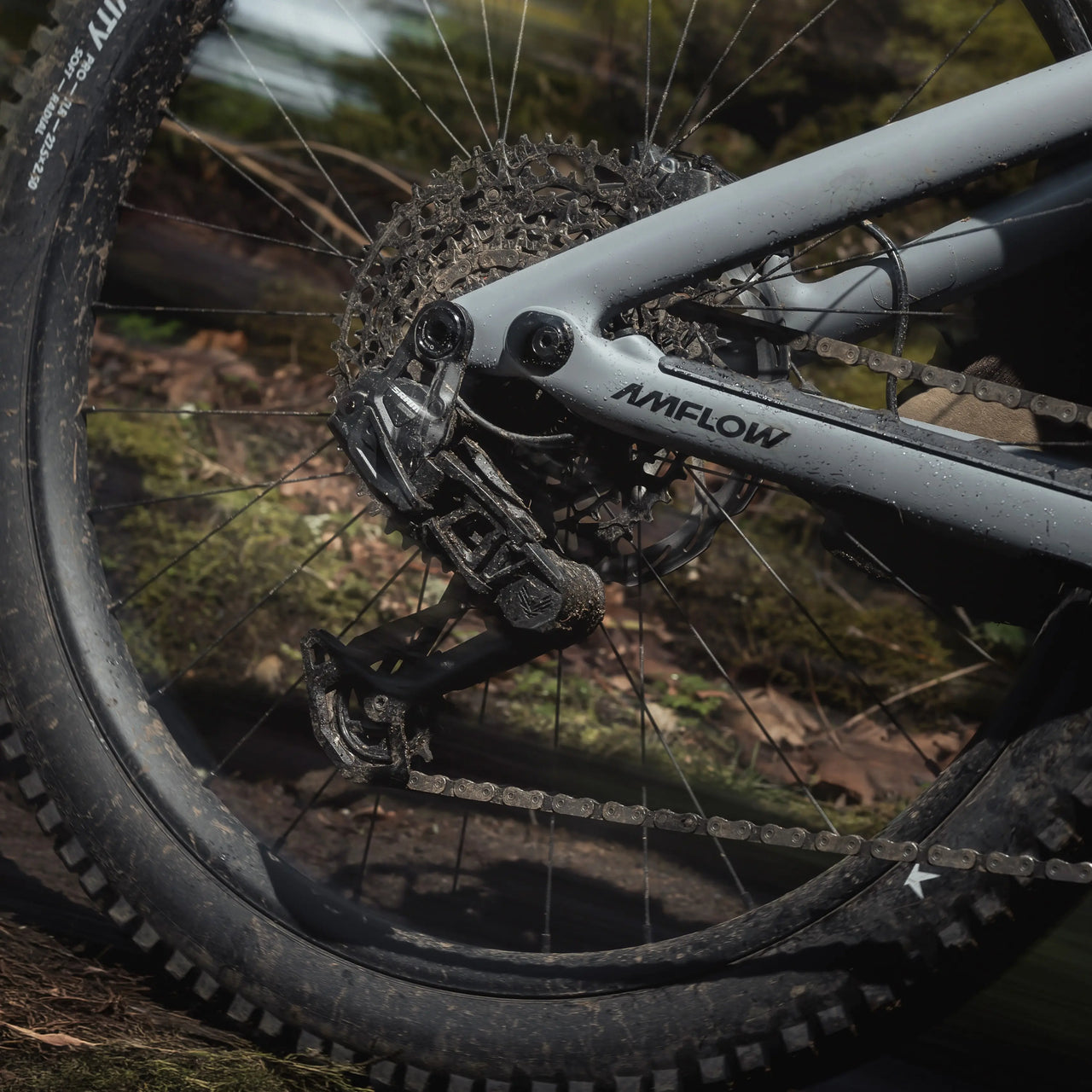

• Rear derailleur: SRAM S1000 Eagle Transmission
• Chainring: SRAM Eagle Transmission DM 38T chainring for Avinox
• Shifter: SRAM AXS Pod Controller
• Cassette: SRAM XS-1270 Eagle Transmission 10–52T
• Chain: SRAM Eagle 70 Transmission Flattop
• Power supply: Avinox M2 Series electronic rear derailleur power cable (SRAM AXS extension)
• Crankset: Avinox SL crank arms (M/L: 155 mm; XL/XXL: 160 mm)

BRAKES

• Magura Gustav Pro hydraulic disc brakes with four-piston calipers
• Magura brake rotors with magnet, 203 mm, 2.5 mm thickness

WHEELS

• Amflow XMA-30 Mullet wheelset
• Front rim: Alloy, 29", 30 mm internal width, 32-hole, Tubeless Ready
• Rear rim: Alloy, 27.5", 30 mm internal width, 32-hole, Tubeless Ready
• Spokes: SAPIM E-Light
• Front hub: Alloy, two sealed bearings, 15×110 mm Boost thru-axle, 32-hole, 6-bolt
• Rear hub: Alloy, four sealed bearings, 12×148 mm Boost thru-axle, 32-hole, 6-bolt, 36T four-pawl freehub, HG

TIRES

• Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft compound, Tubeless Ready
• Rear: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft compound, Tubeless Ready

HANDLEBAR

• Amflow Enduro alloy handlebar
• 40 mm rise, 800 mm width, 35 mm clamp diameter
• 5° upsweep, 9° backsweep

STEM

• Amflow split mountain bike stem
• Length: 35 mm
• Clamp diameter: 35 mm

SADDLE

• Amflow mountain bike saddle

DROPPER SEATPOST

• Amflow dropper seatpost with adjustable travel (0/5/10/15/20 mm)
• Frame sizes L/XL: 210 mm travel
• Frame size XXL: 230 mm travel
