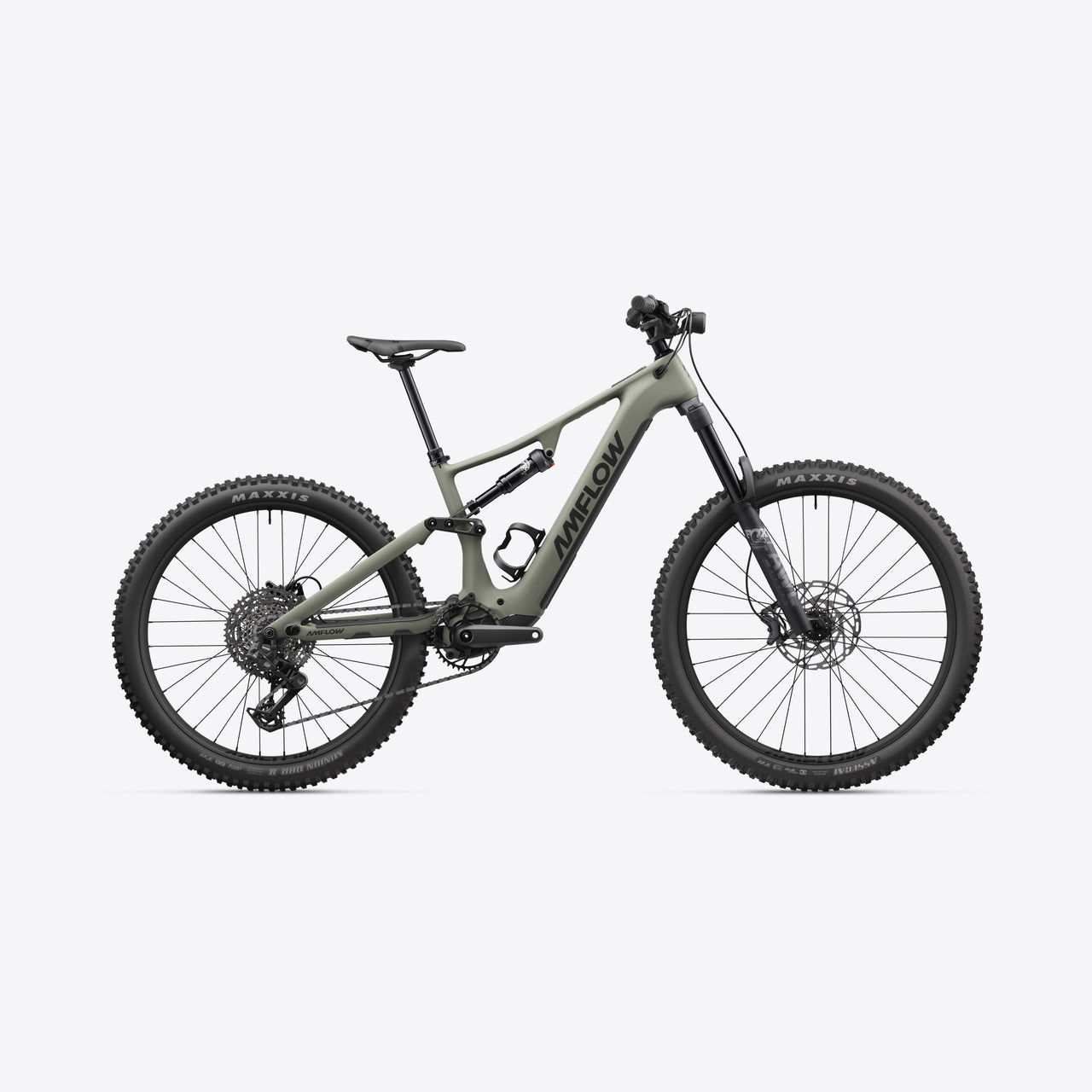

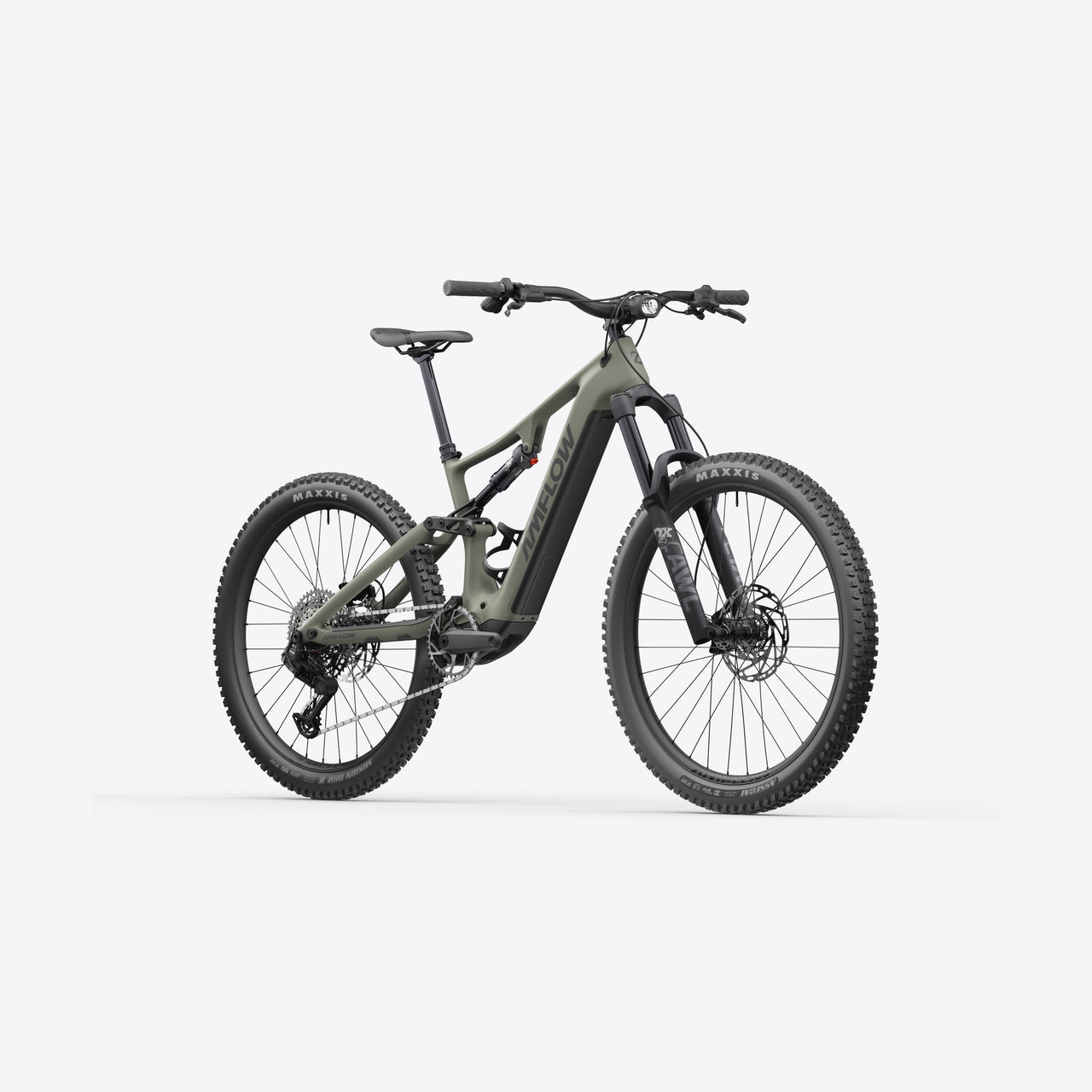

AMFLOW PR CARBON BIKE

The Amflow PR Carbon sets new benchmarks in the high-end e-MTB segment. It combines the impressive performance of cutting-edge drive technology with the lightweight nature of an ultra-light carbon frame.

With a frame weight of approximately 2.9 kg, the bike delivers an outstanding strength-to-weight ratio, forming the foundation for direct and agile handling while ensuring excellent stability and control on demanding trails.

With more than 40 adjustable geometry configurations, the bike can be precisely adapted to the rider’s individual style and the specific demands of the terrain.

At the heart of the system is the Avinox M2 drive unit, delivering 110 Nm of nominal torque and a peak output of 125 Nm for high-performance riding.

The Amflow PR Carbon is equipped with a removable 800 Wh battery, allowing convenient external charging and quick swaps for worry-free long rides.

System control is intuitive thanks to a 2-inch OLED display and wireless controller.

AMFLOW PR CARBON BIKE – KEY FEATURES:

• Carbon frame with a weight of approximately 2.9 kg
• Avinox M2 drive unit with up to 125 Nm torque
• Suspension FOX Float Rhythm rear shock and FOX AWL HD Sport fork
• Drivetrain SRAM S1000 Eagle Transmission rear derailleur
• Progressive geometry with up to 40 adjustment options: head angle, bottom bracket height, and chainstay length
• Battery removable Avinox 800 Wh unit
• Front tire Maxxis Assegai 29.0 × 2.50 M356RU 3C MaxxGrip / EXO+ / TR
• Rear tire Maxxis DHR II 27.5 × 2.50 M327RU New MaxxTerra / DD / TR

TECHNICAL SPECIFICATIONS

• Frame
  • Amflow PR Carbon frame
  • 40 adjustable geometry configurations
  • Compatible with 27.5″ and 29″ rear wheels
  • 5 head angle settings
  • 2 bottom bracket height settings
  • 4 chainstay length settings
  • Up to 40 theoretical geometry combinations
• E-Bike System
  • Avinox M2 drive unit
  • Nominal torque: 110 Nm
  • Peak torque: 125 Nm
  • 2″ Avinox OLED display
  • Removable 800 Wh Avinox battery
  • Wireless Avinox controllers (left and right)
  • Charger 4 A / 168 W
• Rear Shock
  • FOX Float Rhythm
  • Custom tuning
  • LSR adjustment
  • Size: 210×55 mm
  • Air shock
• Fork
  • FOX AWL HD Sport
  • 160 mm travel
  • RAIL 2.0 cartridge
  • Sweep / LSR adjustment
  • 15×110 mm axle
  • 44 mm offset
• Drivetrain
  • SRAM S1000 Eagle Transmission rear derailleur
  • SRAM Eagle Transmission 38T direct mount chainring
  • SRAM AXS Pod controller
  • SRAM XS-1270 Eagle cassette 10–52T
  • SRAM Eagle 70 Flattop chain
  • Avinox SL cranks (155 mm M/L, 160 mm XL/XXL)
• Brakes
  • Tektro TKD173 hydraulic 4-piston brakes
  • Tektro 203 mm rotors (2.3 mm) with magnet
• Wheels
  • Amflow XMA-30 Mullet
  • Front: 29″ alloy, 30 mm internal width
  • Rear: 27.5″ alloy, 30 mm internal width
  • 32-hole tubeless ready
  • SAPIM E-Light spokes
  • Alloy hubs with sealed bearings
  • Rear hub with 4 pawls, 36T HG
• Tires
  • Front: Maxxis Assegai 29×2.50 3C MaxxGrip EXO+ TR
  • Rear: Maxxis DHR II 27.5×2.50 MaxxTerra DD TR
• Handlebar
  • Amflow Enduro alloy handlebar
  • Width 800 mm
  • Rise 40 mm
  • 35 mm clamp diameter
  • Upsweep 5° / Backsweep 9°
• Grips
  • Amflow Enduro Grip 2 lock-on
• Stem
  • Amflow split stem
  • Length 35 mm
  • 35 mm clamp diameter
• Saddle
  • Amflow mountain saddle
• Dropper Seatpost
  • Adjustable spacers 0 / 5 / 10 / 15 / 20 mm
  • M: 190 mm
  • L / XL: 210 mm
  • XXL: 230 mm
