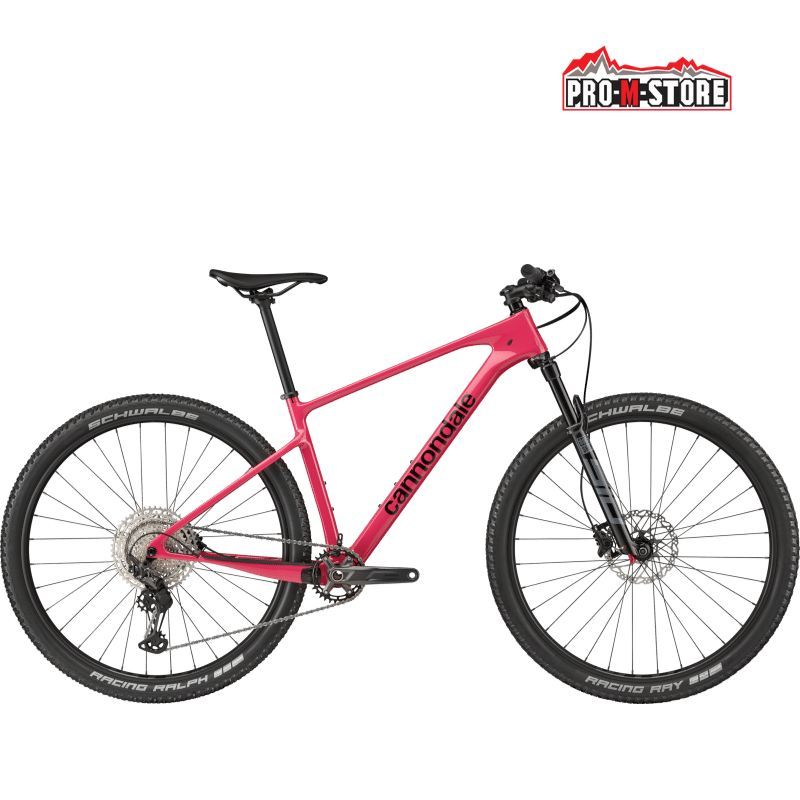

CANNONDALE SCALPEL HT CARBON 4 BIKE

The CANNONDALE SCALPEL HT CARBON 4 is an XC Hardtail MTB specifically designed to make a difference on the climbs, on the descents and always set the best time. The open steering angle (66.5°) increases the stability and control needed when you need to go hard downhill.
The Scalpel HT's size-specific Proportional Response design increases the length of the chainstay as the frame size increases, so you always have a central riding position for maximum handling and traction.
The internal cable routing makes it possible to use full casings for maximum reliability in all weather conditions, or to pass only the wire in order to save weight.
Specific flex zones, located on the chainstays, absorb impacts and dampen shocks from the ground improving control and reducing fatigue to ride harder for longer.

CANNONDALE SCALPEL HT CARBON 4 BIKE MAIN FEATURES:

• Lightweight and super modern carbon frame.
• RockShox SID SL 100mm fork.
• Shimano XT/Deore 12-speed groupset.
• Shimano M500 disc brakes.
• WTB STX i23 tubeless ready rims.
• Schwalbe Racing Ray-Racing Ralph EVO tires.

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger.
• FORK: RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset.
• HEADSET: Integrated, 1-1/8 to 1.5", sealed angular contact bearings.

DRIVETRAIN

• SHIFT: Shimano XT.
• SHIFT LEVER: Shimano Deore M6100, 12-speed.
• CHAIN: Shimano Deore, 12-speed.
• CRANKSET: Shimano M5121, 30T, 55mm chainline.
• COGS: Shimano Deore M6100, 10-51, 12-speed.
• BOTTOM BRACKET: Cannondale Alloy PressFit 30 - 24mm.

BRAKES

• BRAKES: Shimano MT501 hydraulic disc, 160/160mm RT54 rotors.
• BRAKE LEVER: Shimano MT500 hydraulic disc.

WHEELS

• RIMS: WTB STX i23, 32h, tubeless ready.
• SPOKES: DT Swiss Champion 2.0.
• TIRESW: (F) Schwalbe Racing Ray EVO, 29 x 2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25", SnakeSkin, Addix compound, tubeless ready.
• TIRE SIZE: 2.25.
• WHEEL SIZE: 29.
• HUBS: (F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle.

COMPONENTS

• HANDLEBAR: Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm.
• STEM: Cannondale 2, 6061 Alloy, 31.8, 7°.
• GRIPS: Cannondale TrailShroom.
• SADDLE: Cannondale Scoop Shallow Sport, steel rails.
• SEATPOST: C3 Alloy, 27.2x400mm.

ITEM NUMBER

C25401U10MD (Sz.MD - Color: Acid Red)
