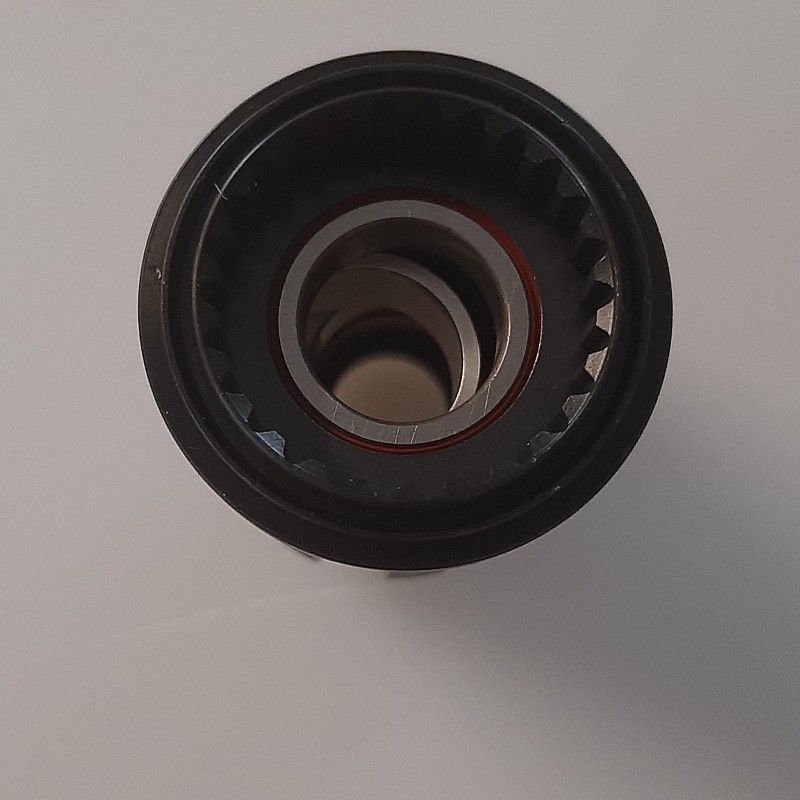

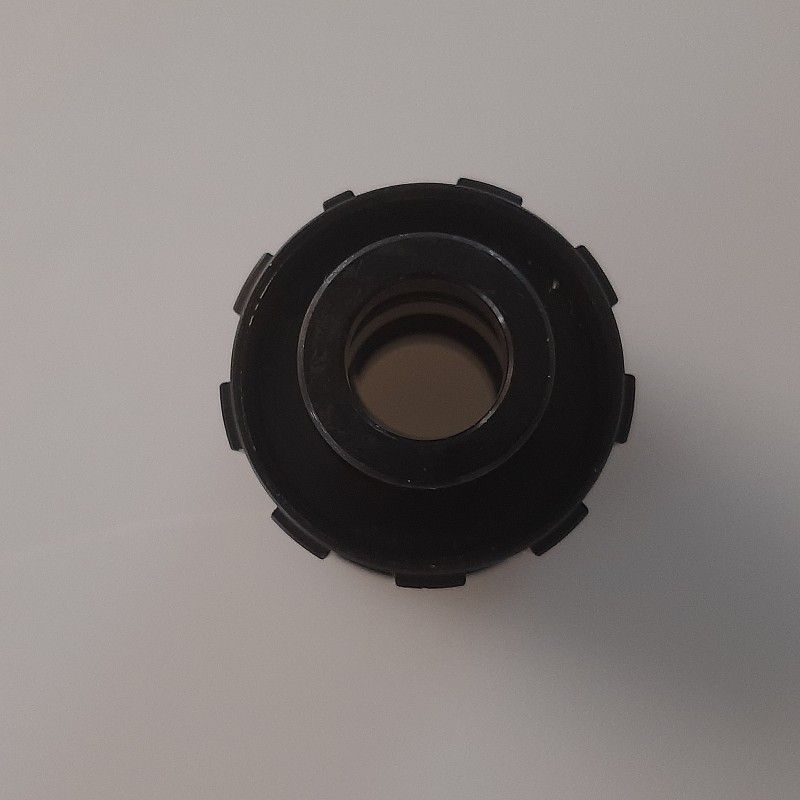

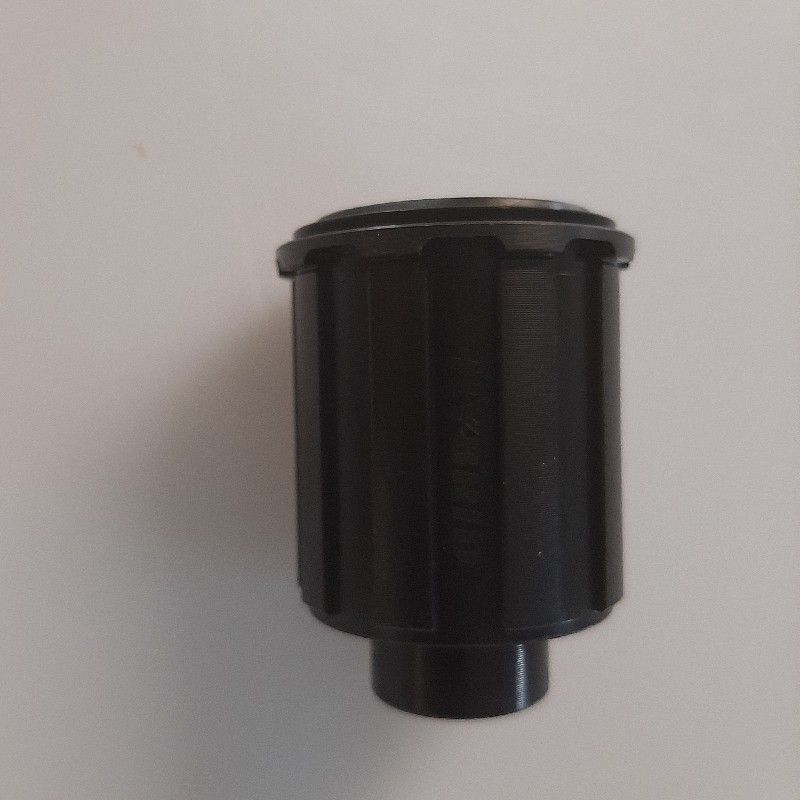

DT SWISS ROTOR FREEWHEEL BODY SHIMANO 10/11-SPEED

DT SWISS SHIMANO 10/11S FREEHUB BODY

The conversion kit with Shimano MTB Hybrid Ratchet System freehub body by dt swiss is made for E-MTBs. Thanks to this freehub body it is possible to convert wheels and mozzi to the Shimano MTB freehub standard with 8-/9-/10-/11 speeds. To cope with the high torques generated by modern E-MTB units, all Hybrid freehub bodies are made of steel and provide an extremely robust support for any cassette. All ball bearings in the mozzi are oversized to withstand high loads and to work perfectly in the toughest conditions. The Hybrid-specific 24 t hardened steel pawls offer maximum durability, have a reduced engagement angle and ensure perfect riding.

DT SWISS SHIMANO 10/11S FREEHUB BODY MAIN FEATURES:

• Use: E-Bike / All Mountain.
• Freehub body: Shimano MTB.
• Speeds: 10/11.
• Freehub body type: dt swiss Ratchet System (24 t).
• Freehub body material: steel.
• Bearings: 2 ball bearings, 6902.
• Seals: external, inner ring.

COMPATIBLE WITH:

WHEELS

12 x 148 mm:
- HXC 1200 SPLINE
- HX 1501 SPLINE ONE
- H 1700 SPLINE

MOZZI

- 240s Classic Disc HYBRID db with 6-bolt.
- 350 Classic Disc HYBRID db with 6-bolt.

Conversion from 12 x 142 mm to 12 x 148 mm is not possible with this kit.

ITEM CODE

HWYABX00S5569S
