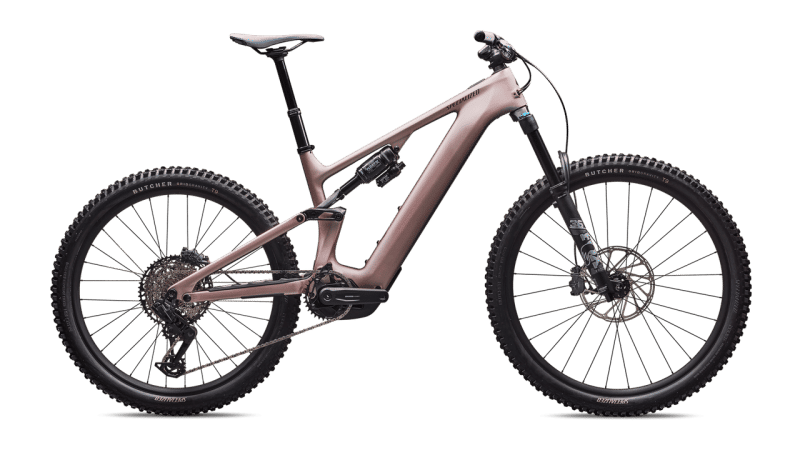

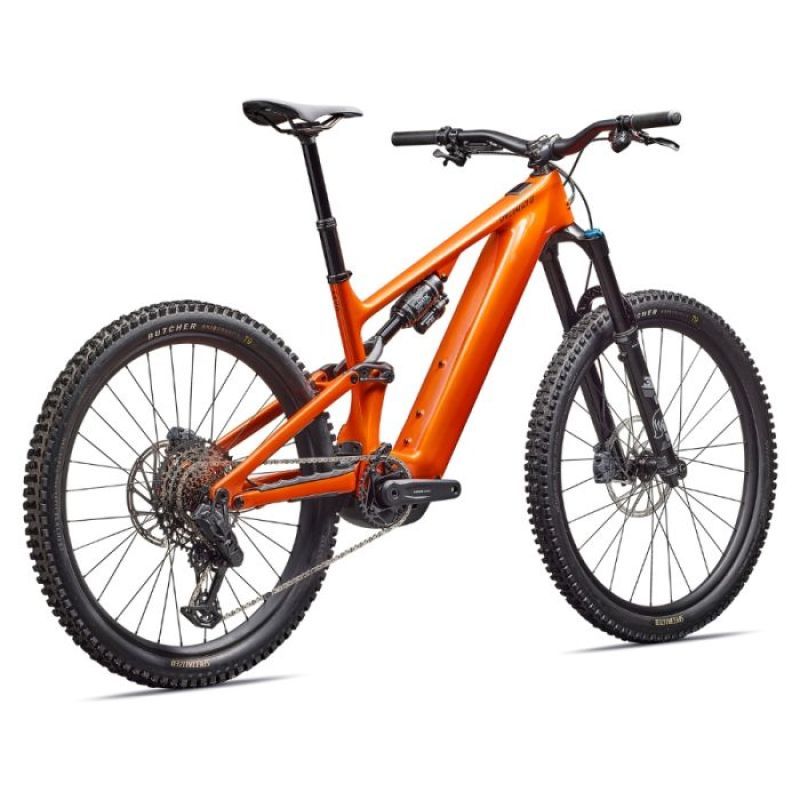

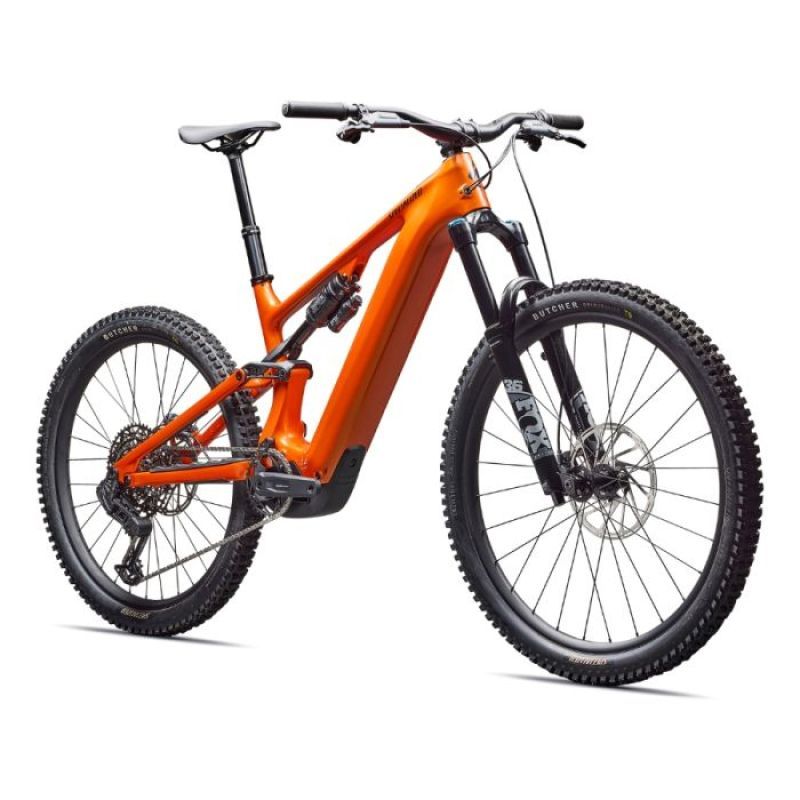

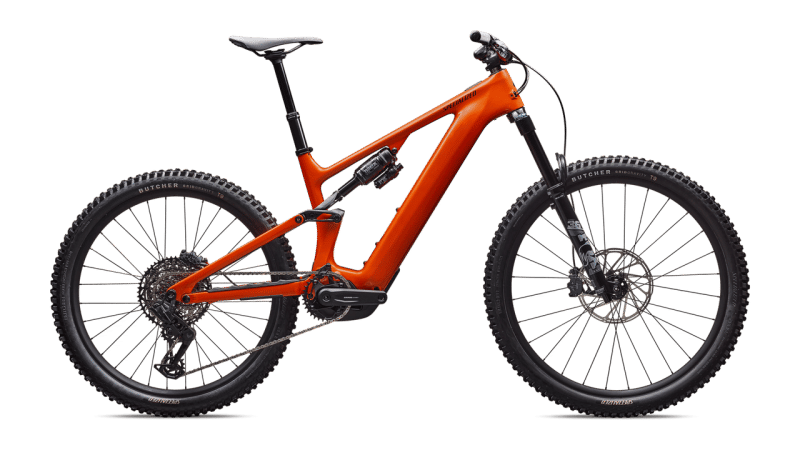

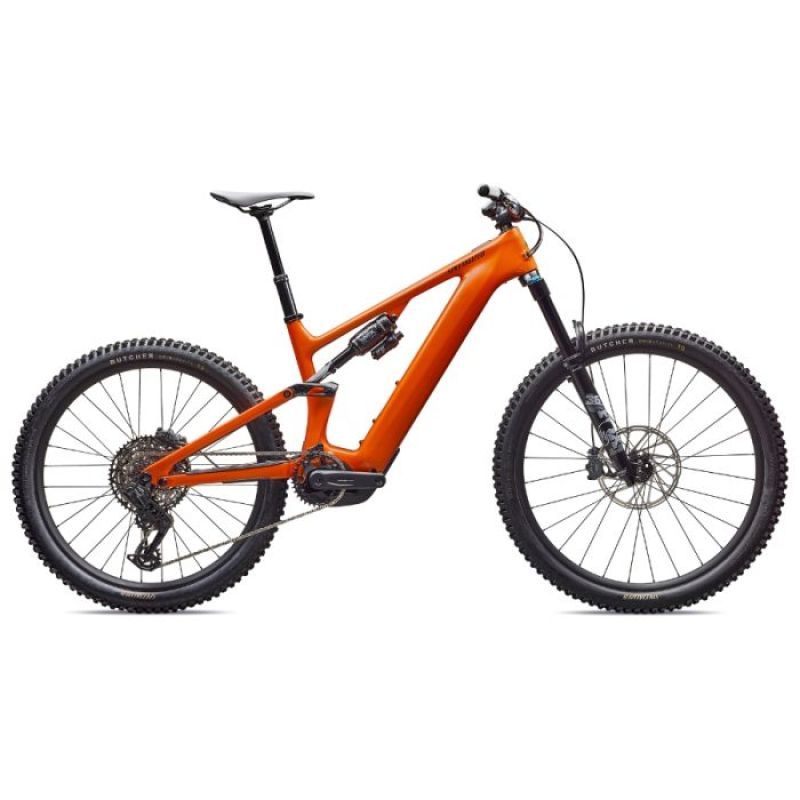

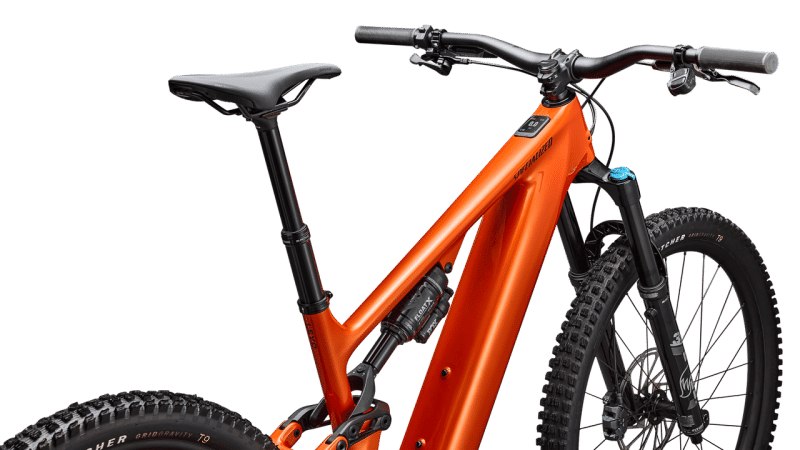

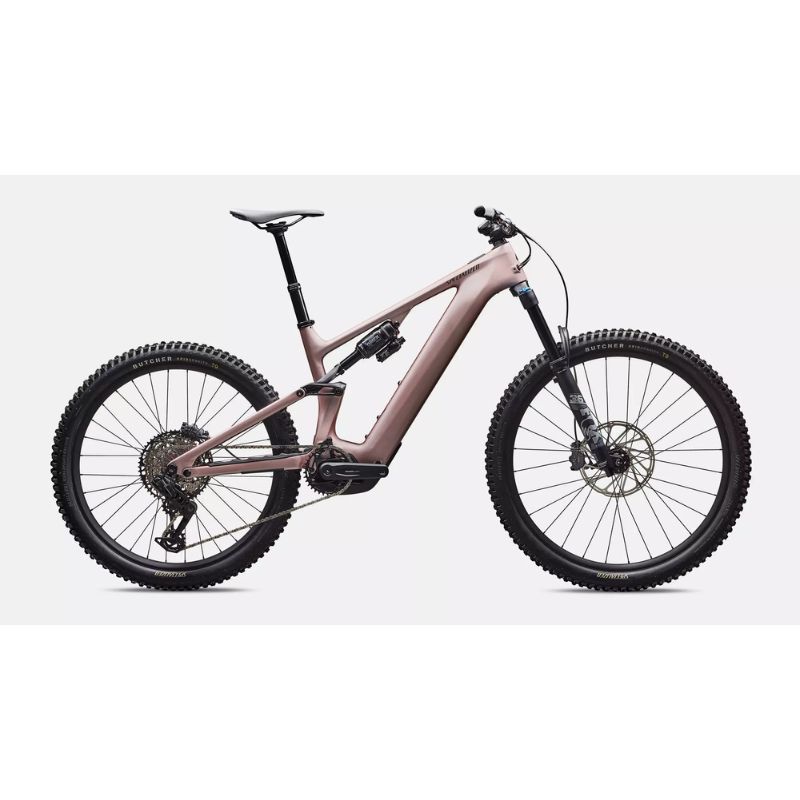

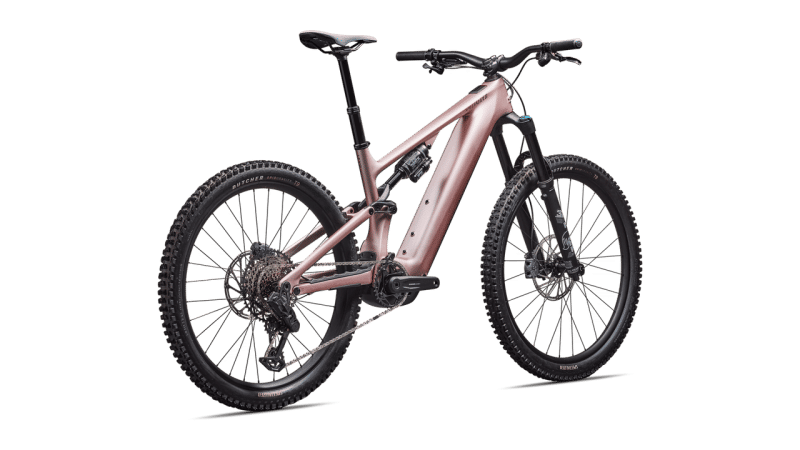

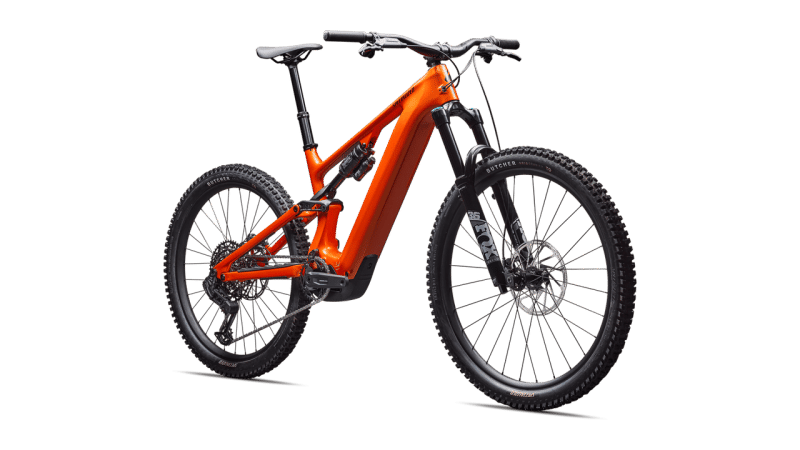

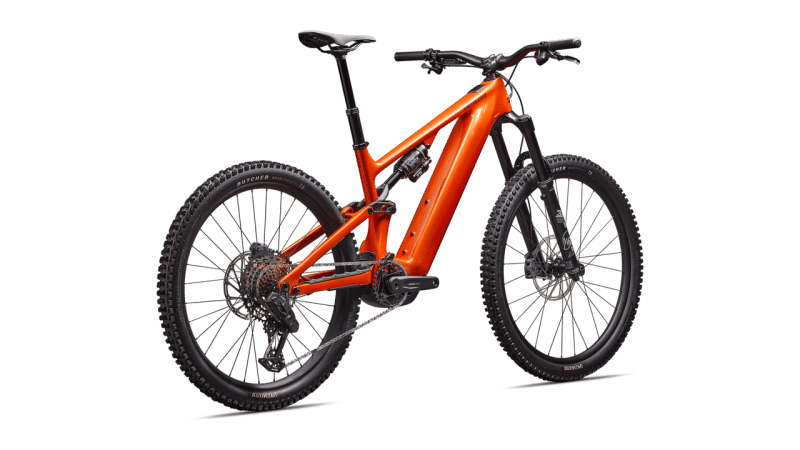

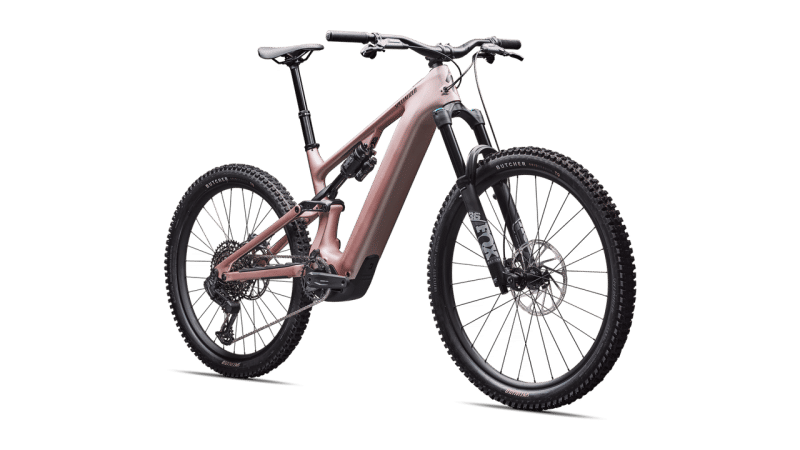

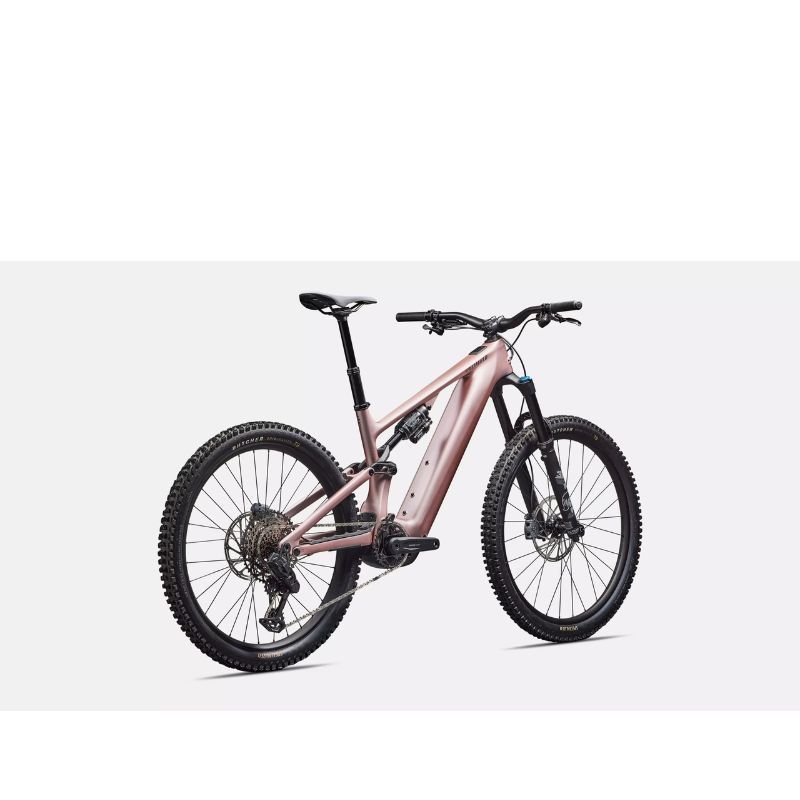

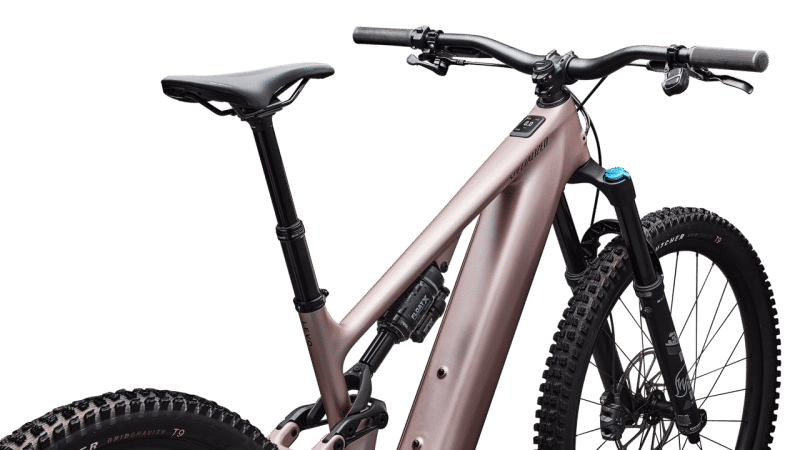

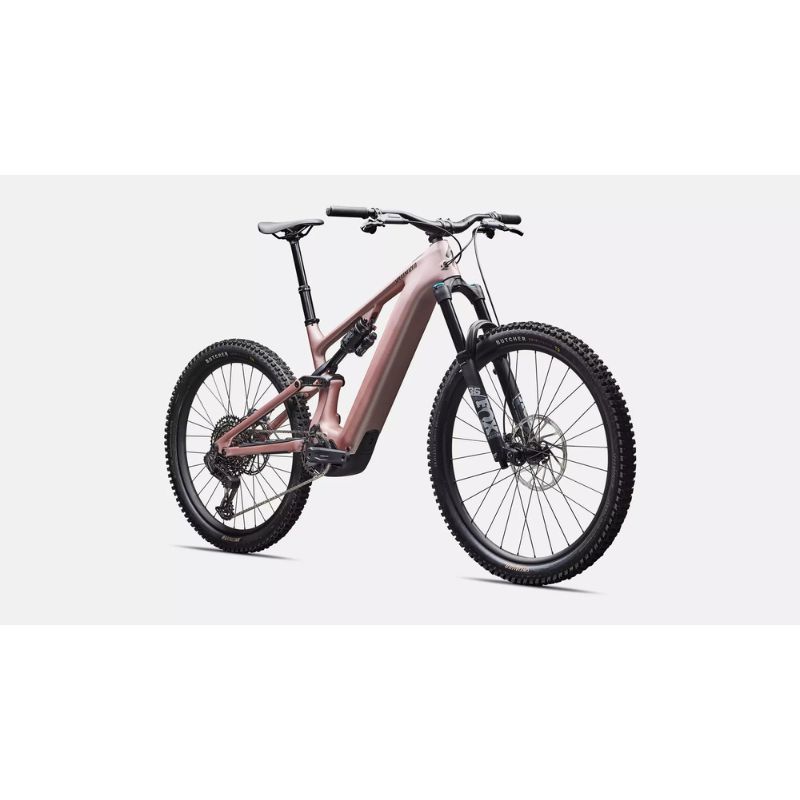

BICYCLE SPECIALIZED TURBO LEVO 4 COMP CARBON
Turbo Levo 4, Where Super Meets Natural
Power, ride and range SuperNatural
The Specialized Science Club presents Levo 4, such an advanced electric mountain bike that it turns you into a pedaling cyborg. Together you become a supernatural force capable of conquering any off-road terrain. Pedal assist, traction, control and range of Levo 4 are your new superpowers. Levo 4, Where Super Meets Natural.
The Specialized Turbo Levo 4 is an electric mountain bike with advanced technology. By combining cutting-edge engineering with Rider-First innovations, the Turbo Levo 4 with its revolutionary design and integrated technology is much more than an e-MTB. Capable of conquering any off-road terrain, it ensures pedal assist, traction, control and range. Version equipped with FACT 11m carbon frame with adjustable geometry, Specialized Ride Dynamics calibrated suspensions and an exclusive integrated SWAT storage compartment in the downtube. The Specialized 3.1 motor at 666 W and 101 Nm with an 840 Wh battery offers up to 5.33 hours of range. While the new MasterMind TCU with advanced control via the Specialized app and integration with Apple Where it offers exit information with maximum customization and safety.
Compatible with additional battery: Specialized Range extender 3.1 (code 98924-5680)
BICYCLE SPECIALIZED TURBO LEVO 4 COMP CARBON CARATTERISTICHE PRINCIPALI:
- Levo 4: E-MTB with SuperNatural assistance and maximum range.
- 01 Nm of torque, 666 watt of power, 840 watt-hour battery.
- Full Power E-MTB, trail
- E-System: Specialized 3.1 motor 666 W and 101 Nm, 840 Wh battery, up to 5.33 hours of range
- Frame: FACT 11m carbon, adjustable geometry and SWAT storage
- Front Suspension: FOX FLOAT 36 Rhythm GRIP 160 mm / Rear: GENIE - FOX FLOAT X Performance 150 mm
- Drivetrain: SRAM S1000 Eagle Type AXS
- Wheels: Specialized alloy rim / Bear Pawls hubs
BIKE DELIVERED PRE-ASSEMBLED BY US*
TECHNICAL SPECIFICATIONS
Electronics
Motor

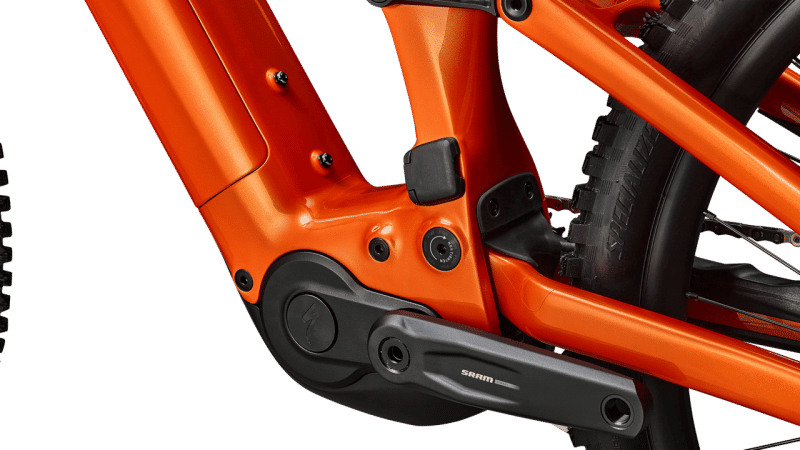

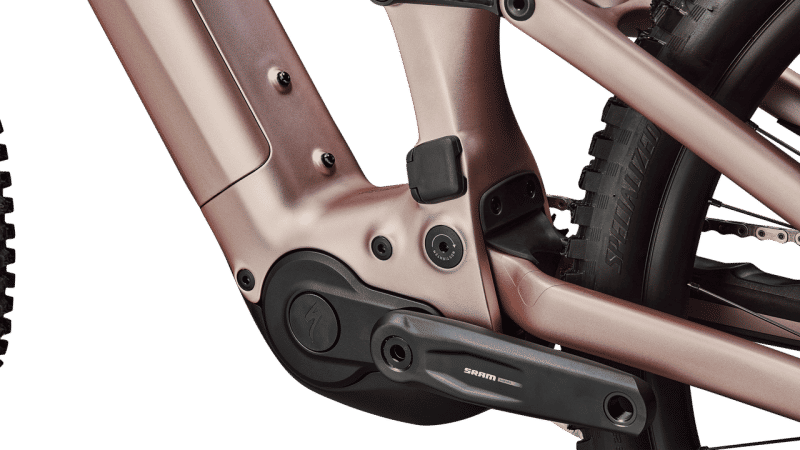

All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840wh battery
UI/Remote

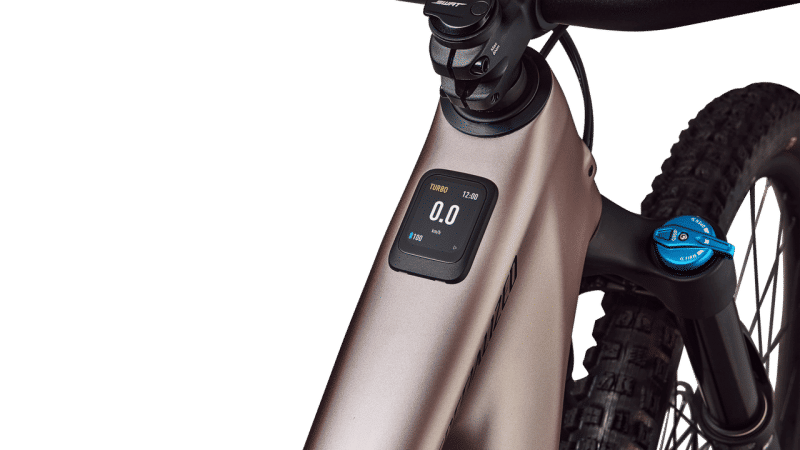

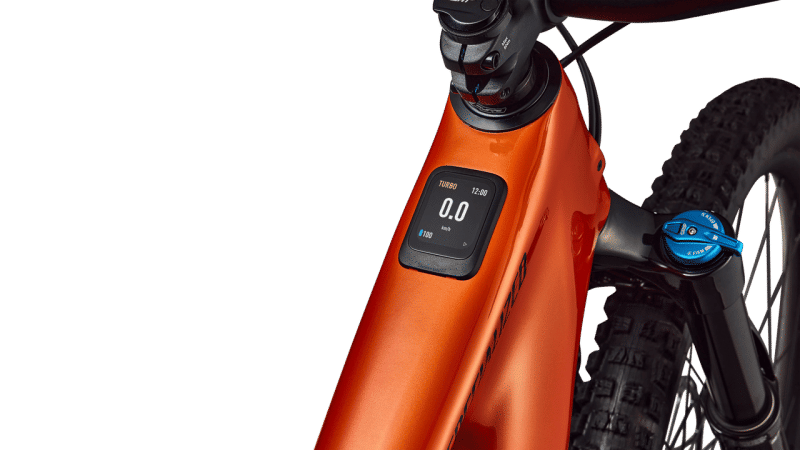

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizable with Specialized app
Charger
Specialized 4amp charger
Frame
Frame

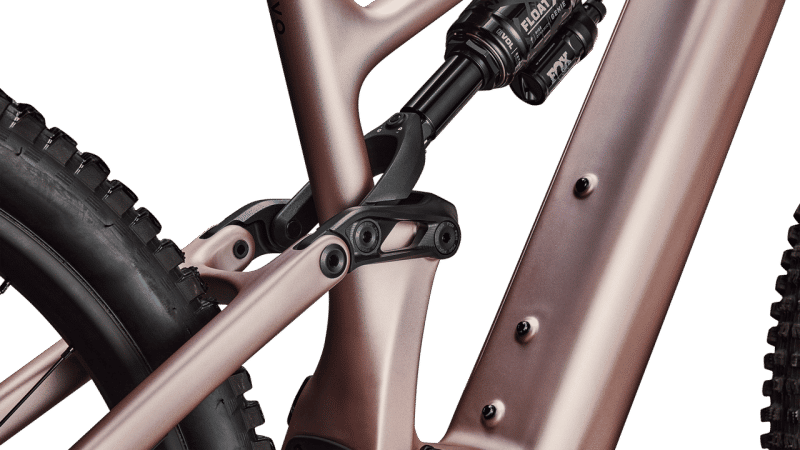

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat collar
Alloy, 38.6mm
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Suspensions
Rear shock

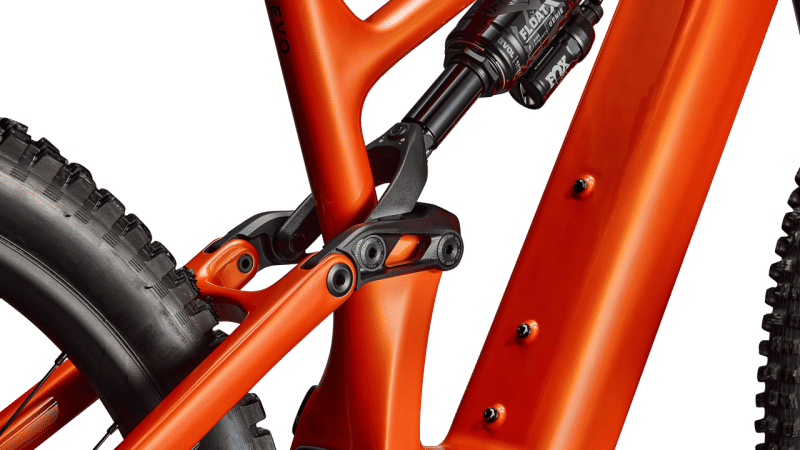

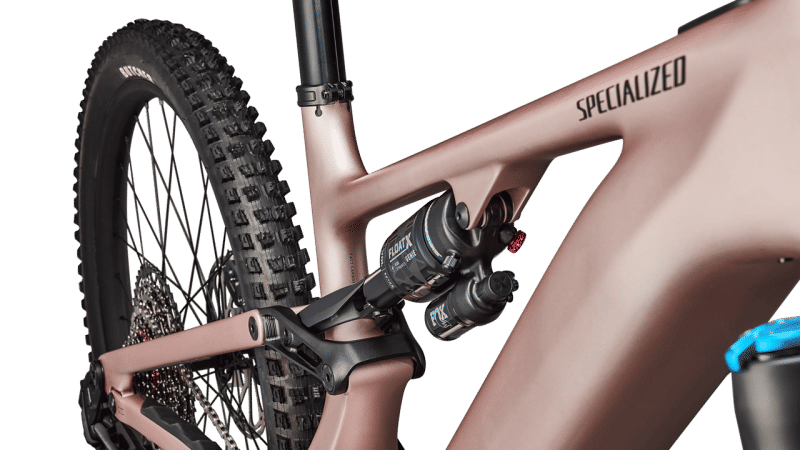

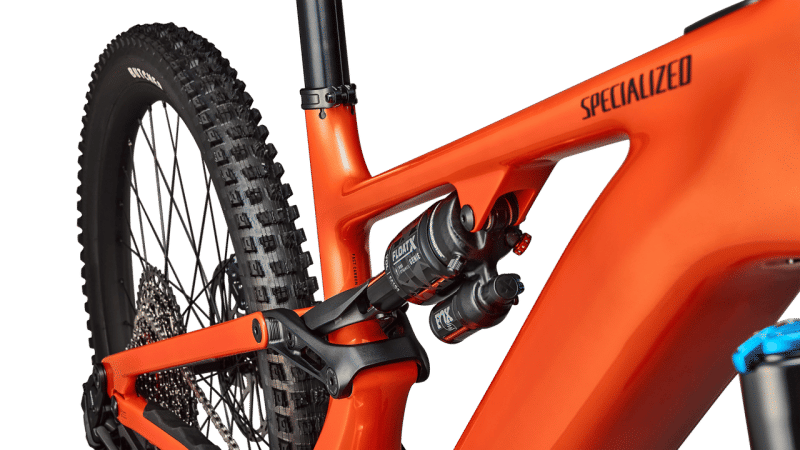

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
Brakes
Front brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
Drivetrain
Controls
SRAM AXS POD Controller
Rear derailleur
SRAM S1000 Eagle Transmission Derailleur
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain
Crankset
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Gearing
SRAM T-type ring, 34T, 104 BCD, steel
Wheels
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Tubeless tires
Tubeless-ready
COCKPIT
Handlebar clamp
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails

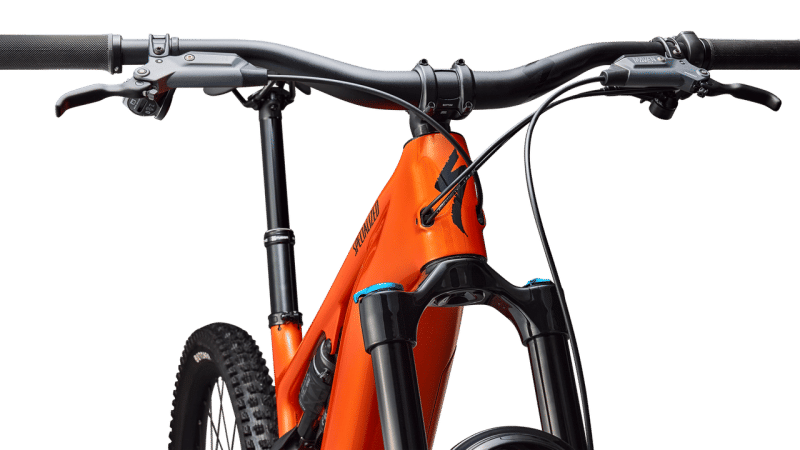

Cockpit
Handlebars

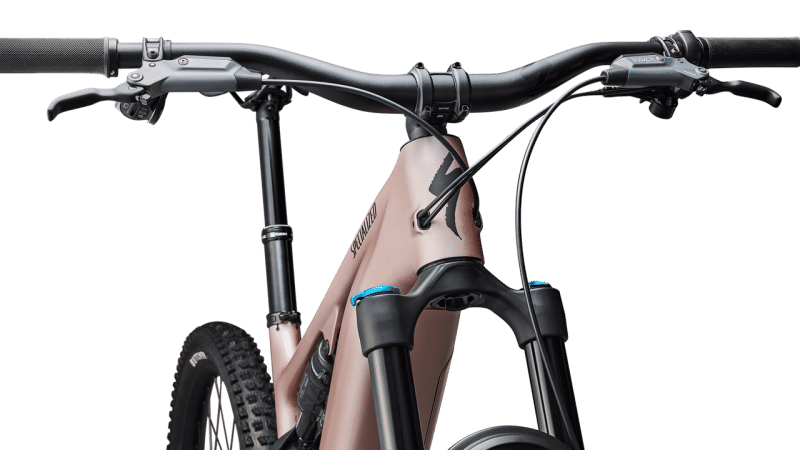

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
Seatpost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
SWAT
SWAT internal downtube storage
Weight
Weight
24.41 kg (53 lb, 13.0 oz)
Weighed size
S4
