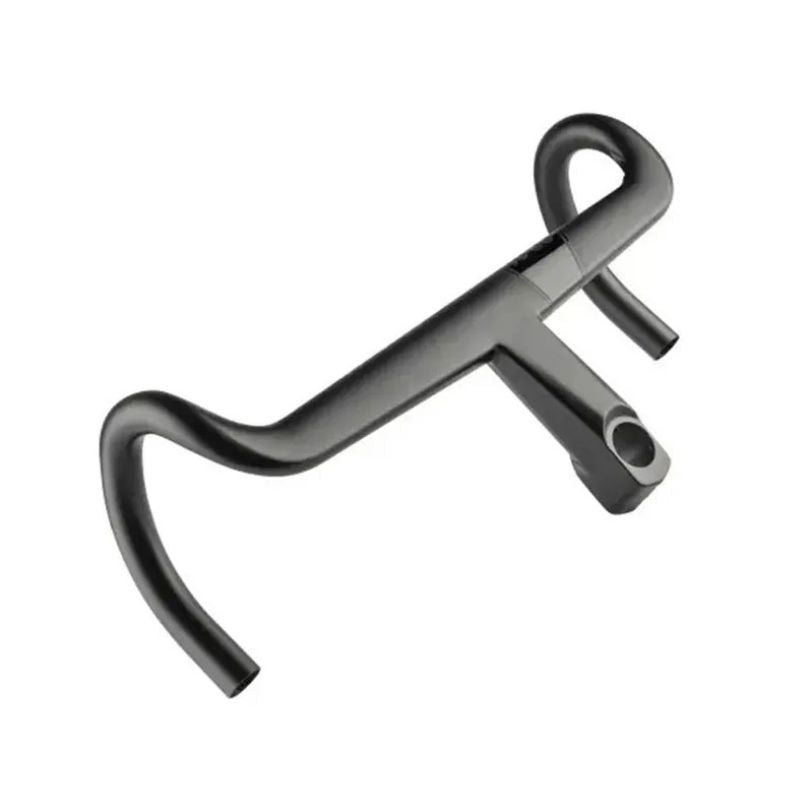

HANDLEBAR COLNAGO COCKPIT CC.01 100MMX390MM
The new Colnago CC.01 integrated handlebar will also be available with the C68. Typically, integrated handlebars are built using several layers of carbon glued together, both on the handlebar and on the handlebar stem. However, the Colnago CC.01 handlebar is made in a single piece, completely monocoque, to the great benefit of weight savings and stiffness.
This technical choice was developed during construction through a particular combination of molds that allows four different handlebar widths (370, 390, 410 and 430 mm top center) together with seven different stem lengths (80, 90, 100, 110, 120, 130 and 140 mm). Sixteen combinations will be available.
It features a relatively long reach, a compact drop and a modest flare (+2 cm), but not an outsweep. The drops have a 2 cm flare (410 mm on top become 430 mm on bottom), except for the 370 size which has a 14 mm flare. The reach is 80 mm (75 mm for size 370) and the drop is 122 mm (119 mm in size 370). The head angle is 84 degrees.
The wider base of the drop significantly improves bike control on descents, while the design responds to the current demand to improve aerodynamics to boost performance.
The longer handlebar stem (compared to the standard 75 mm on compact handlebars) creates a position that is more “inside the bike” on descents and a much wider flat surface, for greater palm comfort with every type of brake lever. The Colnago CC.01 handlebar is designed for modern wireless and wired electronic groups and for internal cable routing, but it is still compatible with external routing and crown brakes.
COLNAGO CC.01 HANDLEBAR COCKPIT MAIN FEATURES:
The Colnago CC.01 handlebar is lighter than the market average when compared with other internally wired handlebars (weight 310 g for size 110-410).
The minimal look of the finish was chosen for lightness: the handlebar will be available in a monochrome version with glossy black graphics on a matte black finish.
The Colnago CC.01 handlebar has been aerodynamically optimized
Colnago CC.01 is backward compatible with the C64 and V3Rs models, both with rim and disc.
The Colnago CC.01 will have a dedicated computer mount with a GoPro-style bayonet and two different support lengths, compatible with Garmin, Wahoo, Bryton and Hammerhead.
The handlebar kit is completed by the dedicated spacers kit, the steering cap containing the multitool and an optional cap that allows height adjustment of the fork before cutting it.
HANDLEBAR COLNAGO COCKPIT CC.01 100MMX390MM
The new Colnago CC.01 integrated handlebar will also be available with the C68. Typically, integrated handlebars are built using several layers of carbon glued together, both on the handlebar and on the handlebar stem. However, the Colnago CC.01 handlebar is made in a single piece, completely monocoque, to the great benefit of weight savings and stiffness.
This technical choice was developed during construction through a particular combination of molds that allows four different handlebar widths (370, 390, 410 and 430 mm top center) together with seven different stem lengths (80, 90, 100, 110, 120, 130 and 140 mm). Sixteen combinations will be available.
It features a relatively long reach, a compact drop and a modest flare (+2 cm), but not an outsweep. The drops have a 2 cm flare (410 mm on top become 430 mm on bottom), except for the 370 size which has a 14 mm flare. The reach is 80 mm (75 mm for size 370) and the drop is 122 mm (119 mm in size 370). The head angle is 84 degrees.
The wider base of the drop significantly improves bike control on descents, while the design responds to the current demand to improve aerodynamics to boost performance.
The longer handlebar stem (compared to the standard 75 mm on compact handlebars) creates a position that is more “inside the bike” on descents and a much wider flat surface, for greater palm comfort with every type of brake lever. The Colnago CC.01 handlebar is designed for modern wireless and wired electronic groups and for internal cable routing, but it is still compatible with external routing and crown brakes.
COLNAGO CC.01 HANDLEBAR COCKPIT MAIN FEATURES:
The Colnago CC.01 handlebar is lighter than the market average when compared with other internally wired handlebars (weight 310 g for size 110-410).
The minimal look of the finish was chosen for lightness: the handlebar will be available in a monochrome version with glossy black graphics on a matte black finish.
The Colnago CC.01 handlebar has been aerodynamically optimized
Colnago CC.01 is backward compatible with the C64 and V3Rs models, both with rim and disc.
The Colnago CC.01 will have a dedicated computer mount with a GoPro-style bayonet and two different support lengths, compatible with Garmin, Wahoo, Bryton and Hammerhead.
The handlebar kit is completed by the dedicated spacers kit, the steering cap containing the multitool and an optional cap that allows height adjustment of the fork before cutting it.
