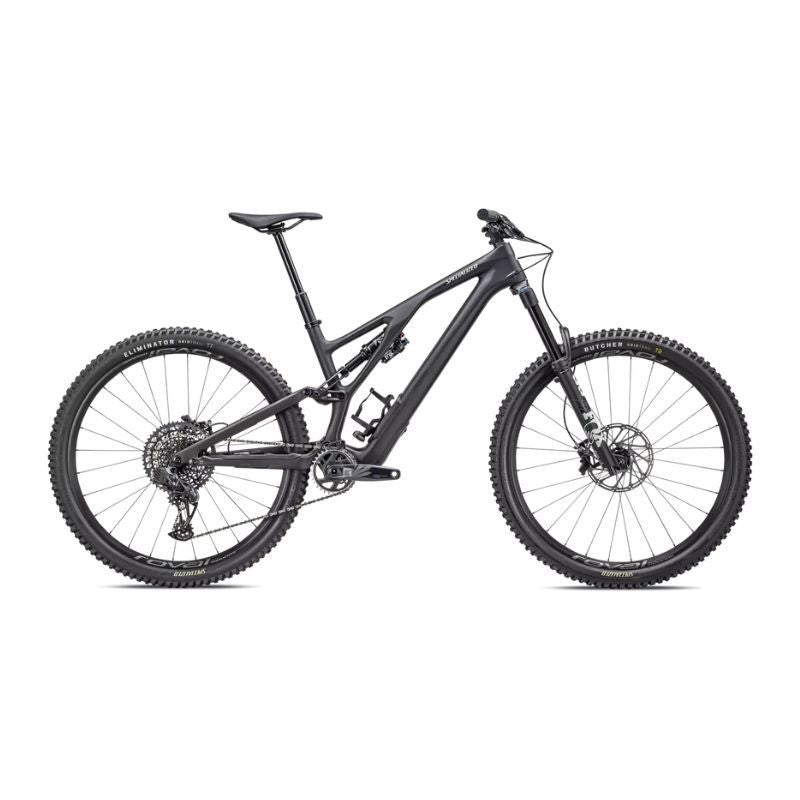

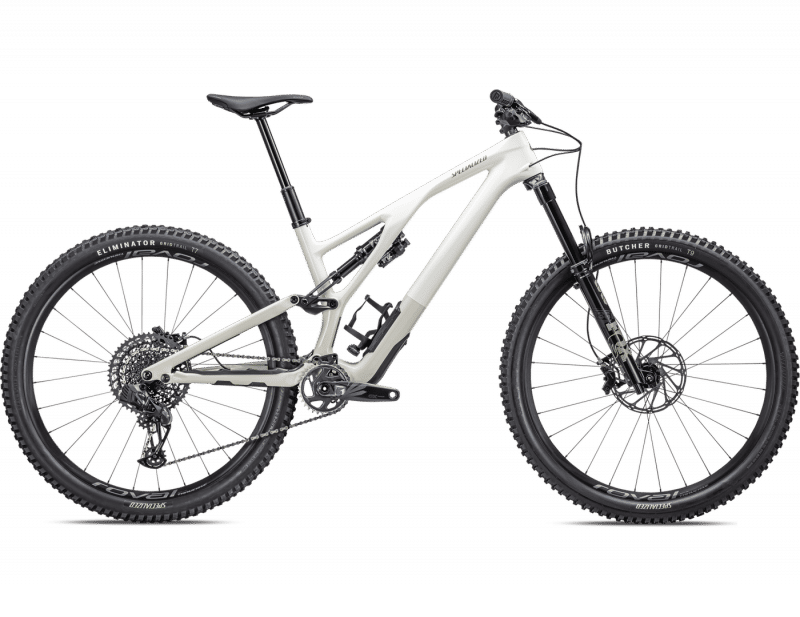

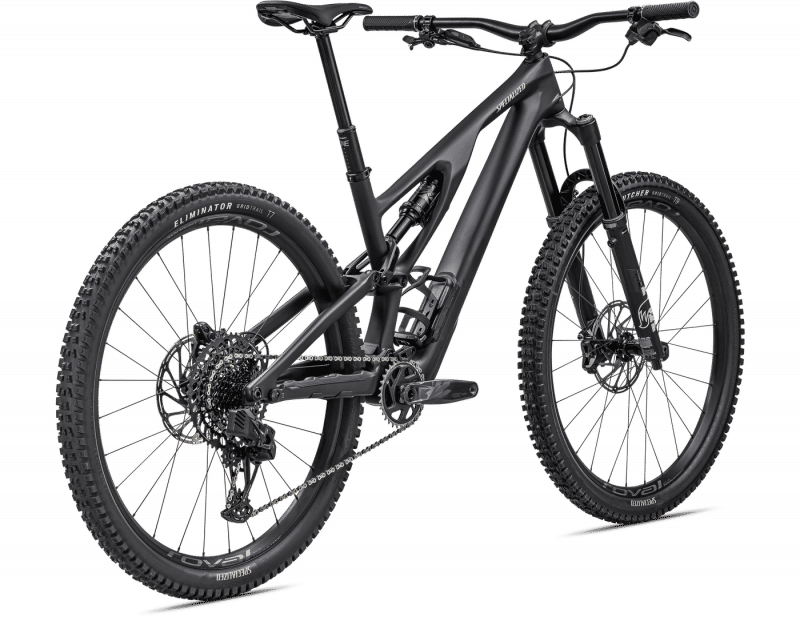

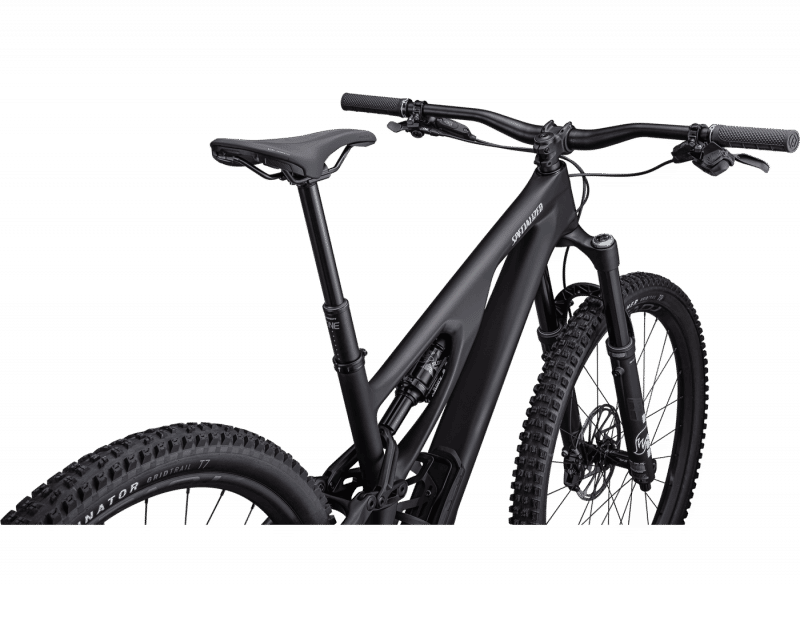

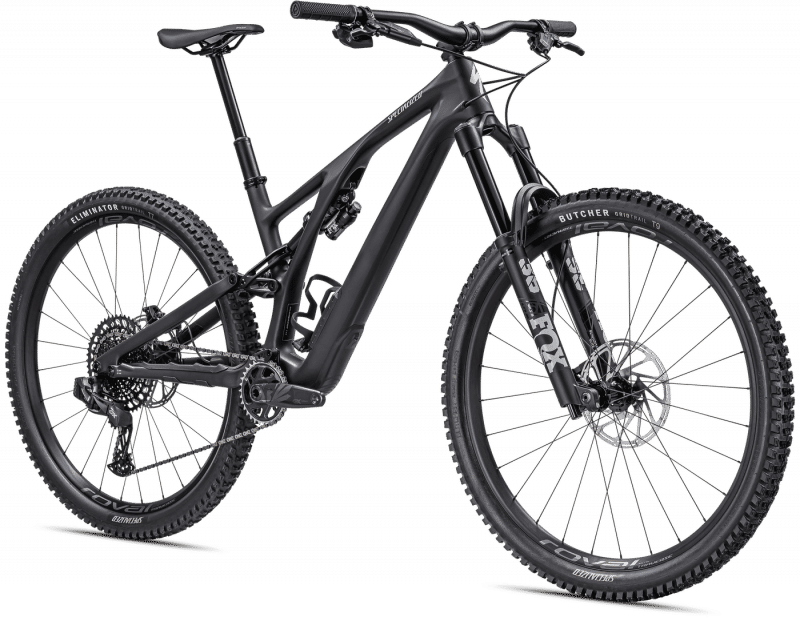

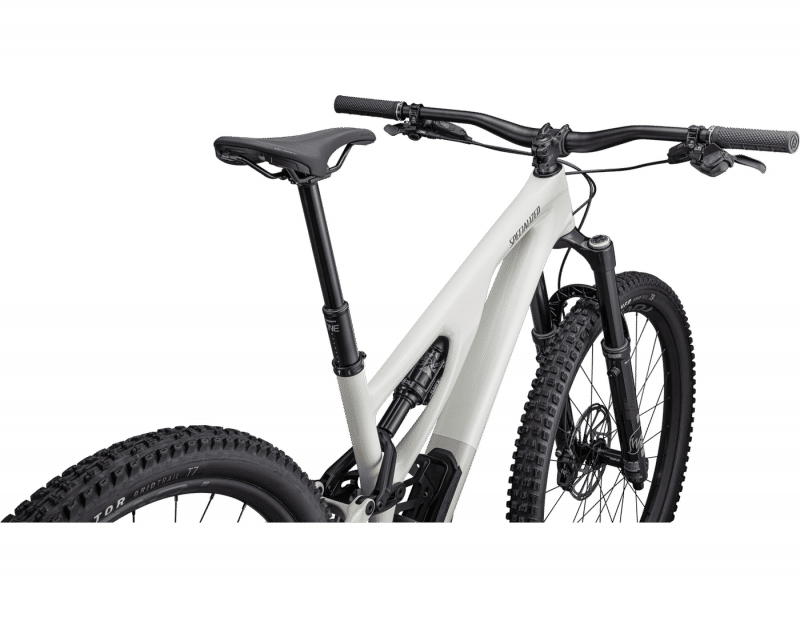

BICYCLE SPECIALIZED STUMPJUMPER EVO EXPERT

BICYCLE SPECIALIZED STUMPJUMPER EVO EXPERT

The STUMPJUMPER EVO EXPERT is a full-suspension MTB capable of offering total control, adjustable geometry, and high-quality, performance components to always get the most out of all Trails. Suspension travel is useless without the right kinematics: pedaling has been improved, creating a sense of capability, efficiency, and liveliness that everyone appreciates. The anti-squat has been increased so the suspension resists bobbing better and small-bump absorption has also been improved. In short, the Stumpjumper descends with full control and climbs with agility.
The S-Sizing geometry makes the bike progressive: long, low, relaxed, short-offset fork, a taller seat tube makes you pedal better. The bike geometry can be adjusted in six positions and you can raise the bottom bracket by 10mm and adjust the head angle by up to two degrees. The bike can be mounted as a Mullet with a 27.5" rear wheel paired with a 29" front wheel.

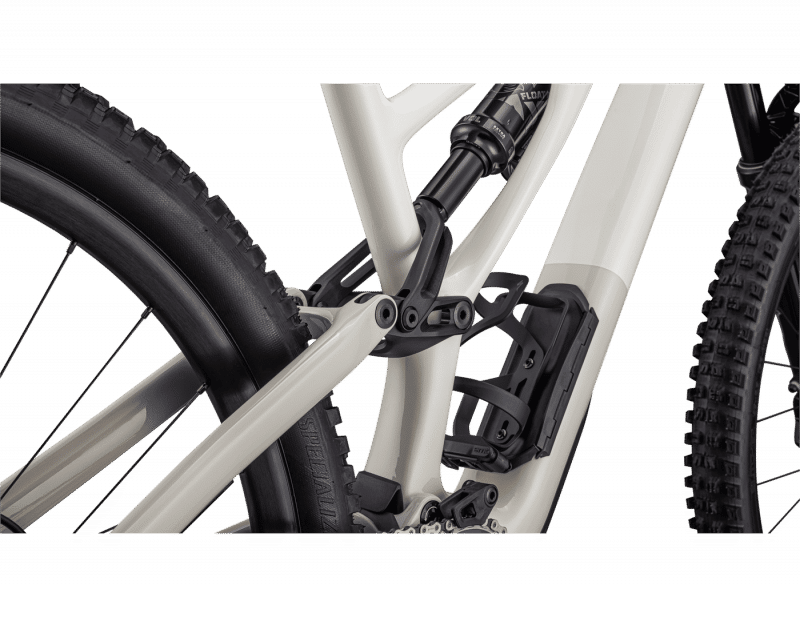

The SWAT compartment allows you to carry pumps and small tools for quick repairs. The SWAT™ Bladder can carry 650 ml of water inside the down tube - the same amount as a bottle.

BICYCLE SPECIALIZED STUMPJUMPER EVO EXPERT KEY SPECIFICATIONS:

• MTB Trail.
• S-Sizing geometry.
• Possibility to be mounted as Mullet.
• Swat compartment and Swat Bladder.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

WHEELS

• RIMS: Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready.
• TUBES: Standard, Presta valve.
• FRONT HUB: Roval, sealed cartridge bearings, 15x110mm spacing, 28h.
• REAR HUB: Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h.
• REAR TIRE: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3".
• SPOKES: DT Swiss Competition Race.
• FRONT TIRE: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3".

COCKPIT

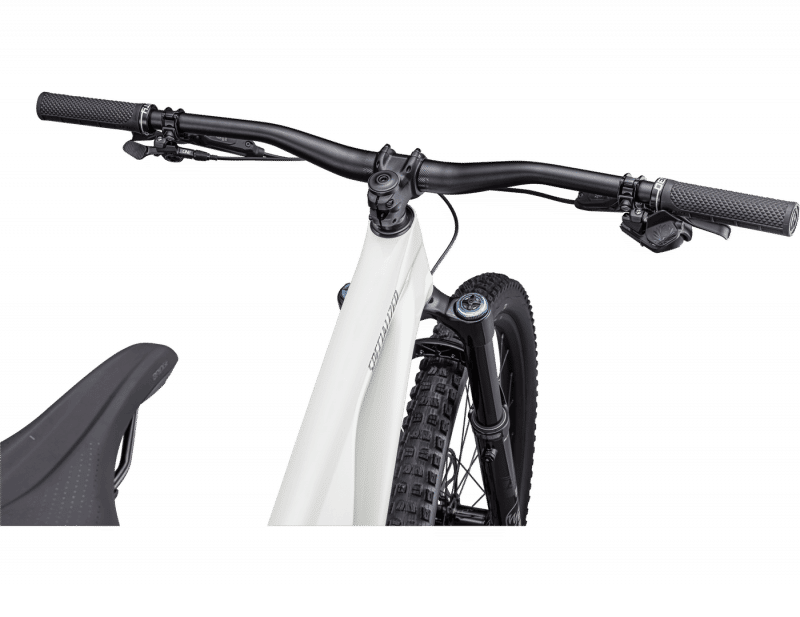

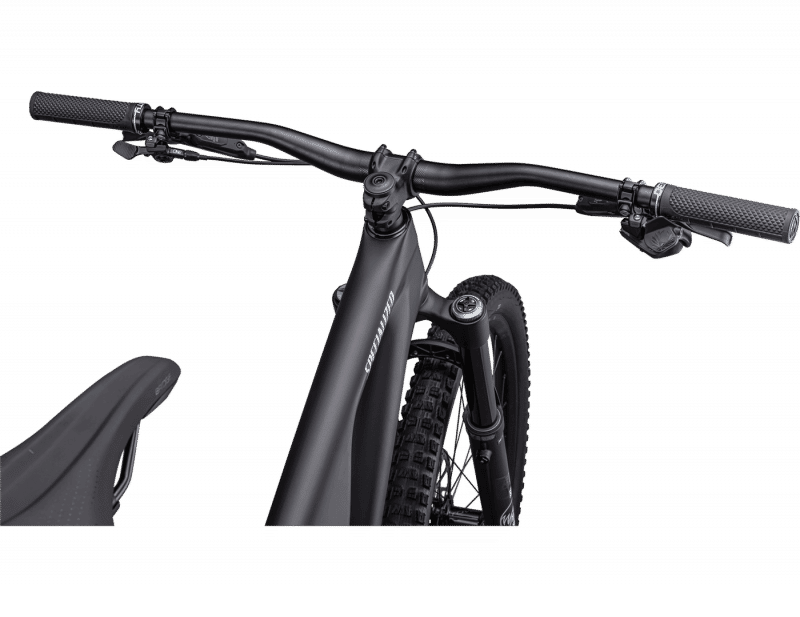

• HANDLEBAR: Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp.
• STEM: OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm).
• SEAT: Bridge Comp, Hollow Cr-mo rails, 155/143mm.
• SEAT CLAMP: Alloy Trail Stem, 35mm bar bore.
• GRIPS: Deity Grips.

DRIVETRAIN

• CASSETTE: Sram XG-1275, 12-speed, 10-52t.
• CHAIN: SRAM GX Eagle, 12-speed.
• CRANKSET: SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
• REAR DERAILLEUR: SRAM GX Eagle AXS, w/ battery cover.
• SHIFTERS: SRAM GX Eagle AXS Controller.
• CRANKSET BB: SRAM DUB, BSA 73mm, Threaded.
• chainrings: 32T.

BRAKES

• REAR BRAKE: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline.
• FRONT BRAKE: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline.

FRAME

• SWAT: Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
• FRAME: FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel.
• STEM: Alloy, 38.6mm.

SUSPENSION

• SHOCK: FOX FLOAT X Performance Elite, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm.
• FORK: FOX FLOAT 36 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm travel, S2-S6: 160mm travel.

TRACTION TABLE

*PRO-M STORE OFFERS THE FREE PRE-ASSEMBLY SERVICE FOR THE BIKE: SEATPOST, FORK, SHIFTER AND BRAKES ARE ALREADY MOUNTED

ARTICLE CODE

96323-3004 (Size S4 - Color: GLOSS BIRCH / TAUPE)
