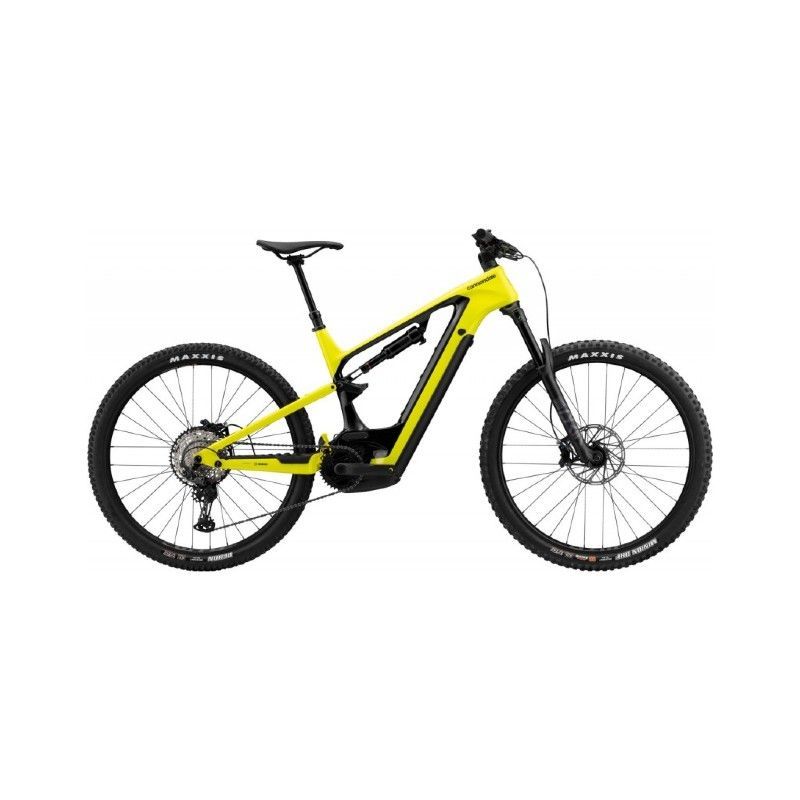

BICYCLE CANNONDALE MOTERRA NEO CARBON 2

BICYCLE CANNONDALE MOTERRA NEO CARBON 2

The CANNONDALE MOTERRA NEO 2 is a dual-suspension e-mtb designed to push your limits. Thanks to its agility, the Bosch CX 750 motor, and the wide range of gears, nothing is beyond its reach. The bike is agile and fast on climbs, stable and composed on all descents, and able to make even the toughest trails easy and exciting.
The Proportional Response design, tailored to each size, makes the bike easy to handle, and the suspension and geometry are unique.
With 150 mm front and rear travel, high power, and top-level components, this bike is comfortable on all trails.
The bike’s battery can be easily removed for charging, and the pannier and fender mounts, compatibility with a kickstand, and space for a bottle cage make this model perfect for travel.
The Bosch Performance Line CX motor is the most powerful Bosch has ever made and with 85 Nm of torque the power applied by pedaling can be amplified up to 340%.
The battery is 750Wh and can be easily charged either directly on the bike or at home.
The bike is equipped with a sealed battery cover and a trial-inspired plate to protect the motor from potential damage.

CANNONDALE MOTERRA NEO CARBON 2 MAIN FEATURES:

• Proportional Response Carbon Frame.
• RockShox Lyrik Select+ 150 mm fork.
• Bosch SmartSystem - 750Wh battery and Performance CX motor.
• Shimano XT/SLX 12-speed groupset.

THE BIKE IS PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAME KIT

• FRAME: Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5" – 1.8" tapered headtube, 18mm two-bolt kickstand mount.
• FORK: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset.
• HEADSET SERIES: Acros integrated sealed bearing, tapered.
• SUSPENSION: RockShox Deluxe Select+, DebonAir, 2-Position mode adjust, adjustable rebound.

E-SYSTEM

• MOTOR: Bosch Performance Line CX 250W.
• BATTERY: Bosch PowerTube 750Wh.
• BATTERY CHARGE: Bosch 4A.
• DISPLAY: Bosch Kiox 300 w/ LED remote.

TRANSMISSION

• SHIFTER: Shimano XT.
• SHIFTER LEVERS: Shimano SLX, 12-speed.
• CHAIN: Shimano SLX, 12-speed.
• CRANKSET: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T.
• CASSETTE: Shimano SLX, 10-51, 12-speed.

BRAKES

• BRAKES: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors.
• BRAKE LEVERS: Shimano MT501 hydraulic disc.

WHEELS

• RIMS: WTB ST i30 TCS, 32h, tubeless ready.
• SPOKES: DT Swiss Champion.
• TIRE COVERS: (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - Small size), EXO, tubeless ready.
• TIRE SIZE: 2.6.
• WHEEL SIZE: 29.
• HUBS: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle.
• FRONT TIRE COVER: Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready.
• REAR TIRE COVER: Maxxis Rekon, 29 x 2.6" (27.5x2.6" - Small size), EXO, tubeless ready.

COMPONENTS

• HANDLEBAR: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm.
• HANDLEBAR STEM: Cannondale 2, 6061 Alloy, 35mm, 0°.
• GRIPS: Fabric FunGuy.
• SADDLE: Fabric Scoop Shallow Sport, steel rails.
• SEATPOST: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL).

SIZE CHART

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY OF THE BIKE: SADDLE, FORK, SHIFTER, AND BRAKES ARE ALREADY MOUNTED

ITEM CODE

C25252U20MD (Size MD - Color: Highlighter) / C25252U20LG (Size LG - Color: Highlighter)
